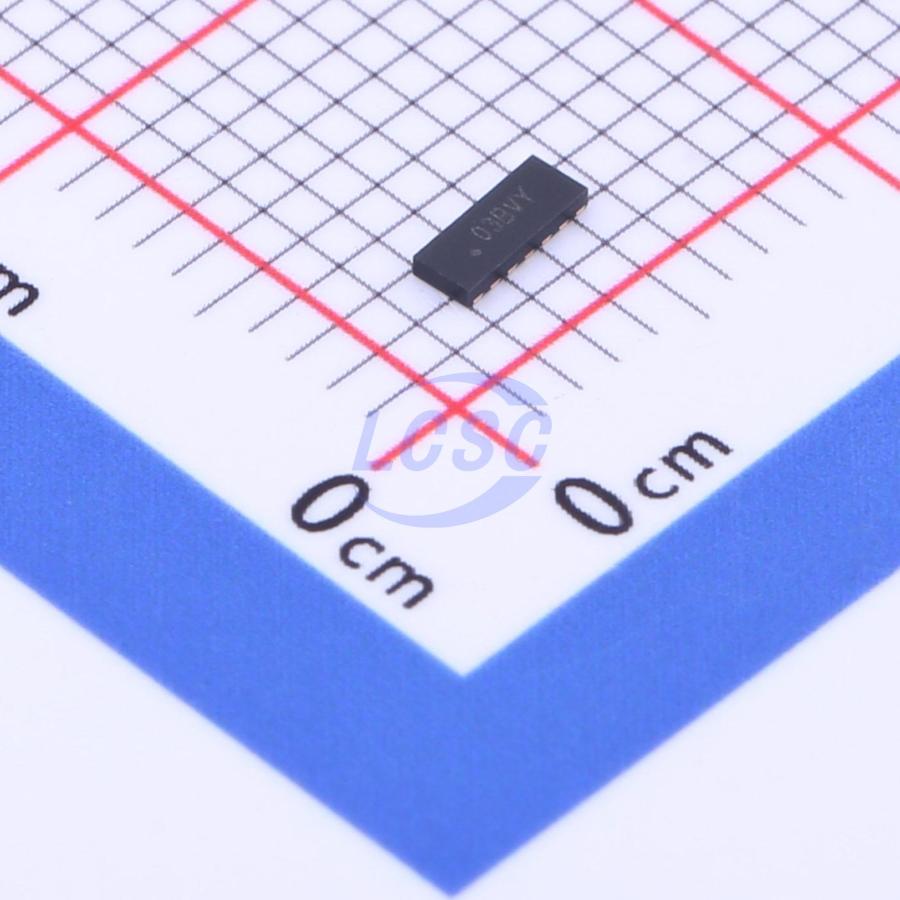

TPD6E05U06RVZR
14VC Clamp 2.5A@8/20us Ipp ESD DIODE USON-14(1.4x3.5)
- Manufacturer
- TI
- Manufacturer part #
- TPD6E05U06RVZR
- Store part #
- C962978
- Package / case
- USON-14(1.4x3.5)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
62 in stock
#C962978
Stock & price checked 16 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹85.64 | ₹85.64 |
| 10+ | ₹69.55 | ₹695.50 |
| 30+ | ₹62.60 | ₹1,878.00 |
| 100+ | ₹54.12 | ₹5,412.00 |
| 500+ | ₹50.21 | ₹25,105.00 |
| 1,000+ | ₹47.83 | ₹47,830.00 |
1 × ₹85.64
₹85.64
excl. GST
₹101.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPD6E05U06RVZR
₹85.64 for 1 + GST
Specifications
- Clamping Voltage
- 14V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 2.5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 40W@8/20us
- Number of Channels
- 6
- Voltage - Breakdown
- 8.5V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 10nA
- Reverse Stand-Off Voltage (Vrwm)
- 5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.038 g
Overview
The TPDxE05U06 is a series of electrostatic discharge (ESD) protection diode products based on unidirectional transient voltage suppressors (TVS), featuring ultra-low capacitance. The ESD shock dissipation value of each device is higher than the highest level specified in the IEC 61000 - 4 - 2 international standard. The ultra-low load capacitance of the TPDxE05U06 makes it highly suitable for protecting any high-speed signal pins.
Applications
- HDMI 1.4b
- HDMI 2.0
- USB 3.0
- MHL
- LVDS interface
- DisplayPort
- PCI-Express
- eSATA interface
- V-by-One HS
Key features
- IEC61000-4-2 Level 4 ESD protection:
- ±12 kV air discharge
- ±15 kV contact discharge
- IEC 61000-4-4 EFT protection: 80A (5/50ns)
- IEC 61000-4-5 Surge protection: 2.5A (8/20μs)
- IO capacitance 0.42pF to 0.5pF (typical)
- DC breakdown voltage 6.5V (minimum)
- Ultra-low leakage current 10nA (maximum)
- Low ESD clamping voltage
- Industrial temperature range: -40°C to +125°C
- Simple feedthrough wiring package
- Industry-standard SOD-523 package (1.60mm×0.80mm×0.65mm)
