TECH PUBLICDatasheet (PDF)

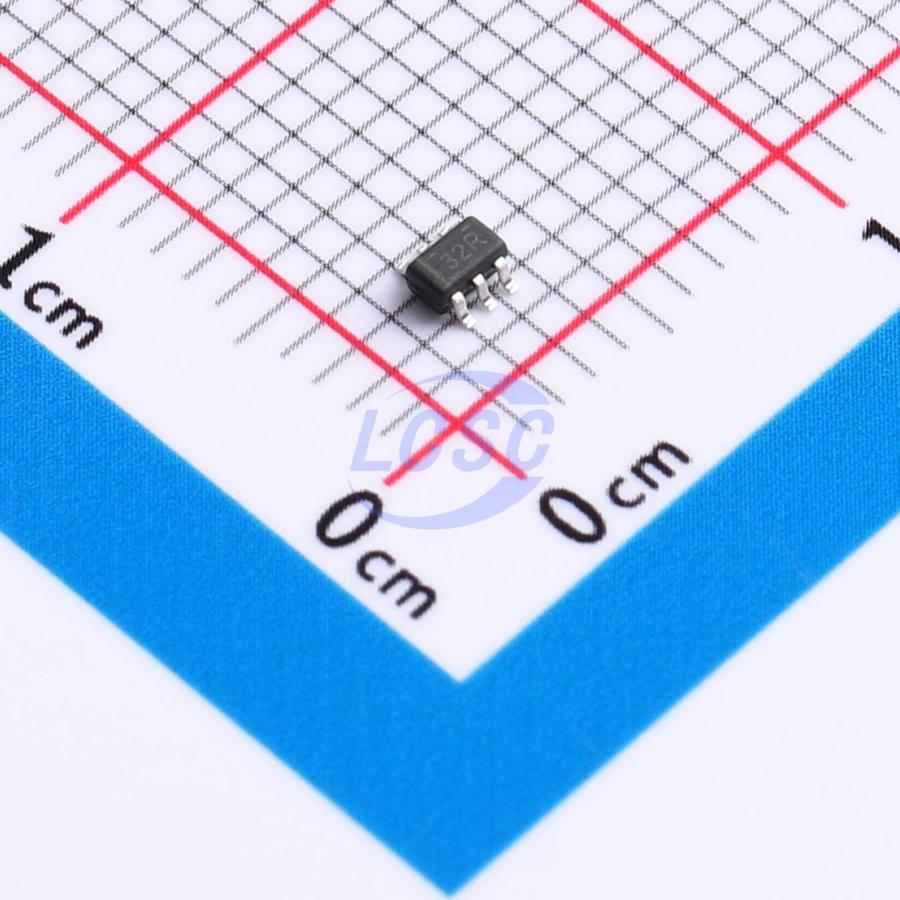

TPDG9411EDL
8.9Ω 2V~5.5V SOT-363 Analog Switches, Multiplexers, Demultiplexers RoHS
SOT-363ROHS CompliantActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPDG9411EDL
- Store part #
- C49375128
- Package / case
- SOT-363
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,460 in stock
#C49375128
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.81 | ₹79.05 |
| 50+ | ₹13.81 | ₹690.50 |
| 150+ | ₹12.95 | ₹1,942.50 |
| 500+ | ₹11.88 | ₹5,940.00 |
| 3,000+ | ₹11.40 | ₹34,200.00 |
| 6,000+ | ₹11.11 | ₹66,660.00 |
5 × ₹15.81
₹79.05
excl. GST
₹93.28 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPDG9411EDL
₹79.05 for 5 + GST
Specifications
- Features
- Power-off isolation
- Operating Temperature
- -40℃~+85℃
- Ron
- 8.9Ω
- Voltage - Supply
- 2V~5.5V
- Con
- 7pF
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.052 g
Overview
This device is a low-voltage single-pole double-throw analog switch designed for signal multiplexing in chopping, modulation/demodulation, signal gating, and analog-to-digital and digital-to-analog conversion systems.
Applications
- Mobile phones and TWS earphones
- Audio, video, UART, USB2.0 signal and power routing
Key features
- Low on-resistance: Ron = 8.0Ω at A = 5V
- 1.8V logic-compatible control pin
- A pin can override VCC for true isolation even during power failure
- High off-state isolation: -100dB at 100KHz
- Low inter-channel crosstalk: -97dB at 100KHz
- High bandwidth: -3dB at 100MHz, suitable for USB2.0 high-speed signal routing
- Low quiescent current: <2uA over wide supply voltage range (2.0V ~ 5.5V)
