TECH PUBLICDatasheet (PDF)

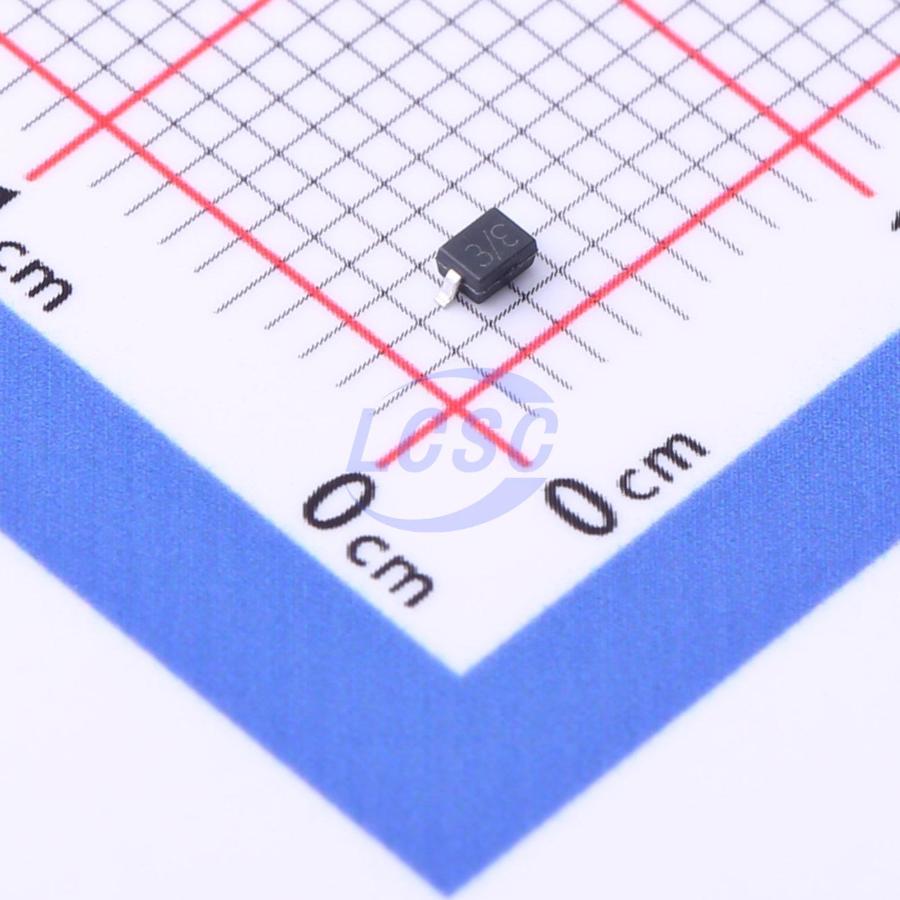

TPE03GHC
12VC Clamp 38A@8/20us Ipp SOD-323
SOD-323RoHSActive
3.3VWM 12VC SOD-323
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPE03GHC
- Store part #
- C2890116
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,525 in stock
#C2890116
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.92 | ₹59.60 |
| 50+ | ₹9.63 | ₹481.50 |
| 150+ | ₹8.48 | ₹1,272.00 |
| 500+ | ₹7.61 | ₹3,805.00 |
| 3,000+ | ₹6.15 | ₹18,450.00 |
| 6,000+ | ₹5.81 | ₹34,860.00 |
5 × ₹11.92
₹59.60
excl. GST
₹70.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPE03GHC
₹59.60 for 5 + GST
Specifications
- Clamping Voltage
- 12V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 38A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 450W@8/20us
- Voltage - Breakdown
- 4V
- Number of Channels
- 1
- Reverse Leakage Current (Ir)
- 200nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
Applications
- Cellular Handsets and Accessories
- Personal Digital Assistants
- Notebooks and Handhelds
- PortableInstrumentation
- Peripherals
Key features
- 450W peak pulse power (8/20μs)
- Protects one data or power line
- Operating voltage: 3.3V
- Ultra low clamping voltage
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-4 (EFT) 80A (5/50ns)
- IEC61000-4-5 (SURGE) 38A (8/20us)
