TECH PUBLICDatasheet (PDF)

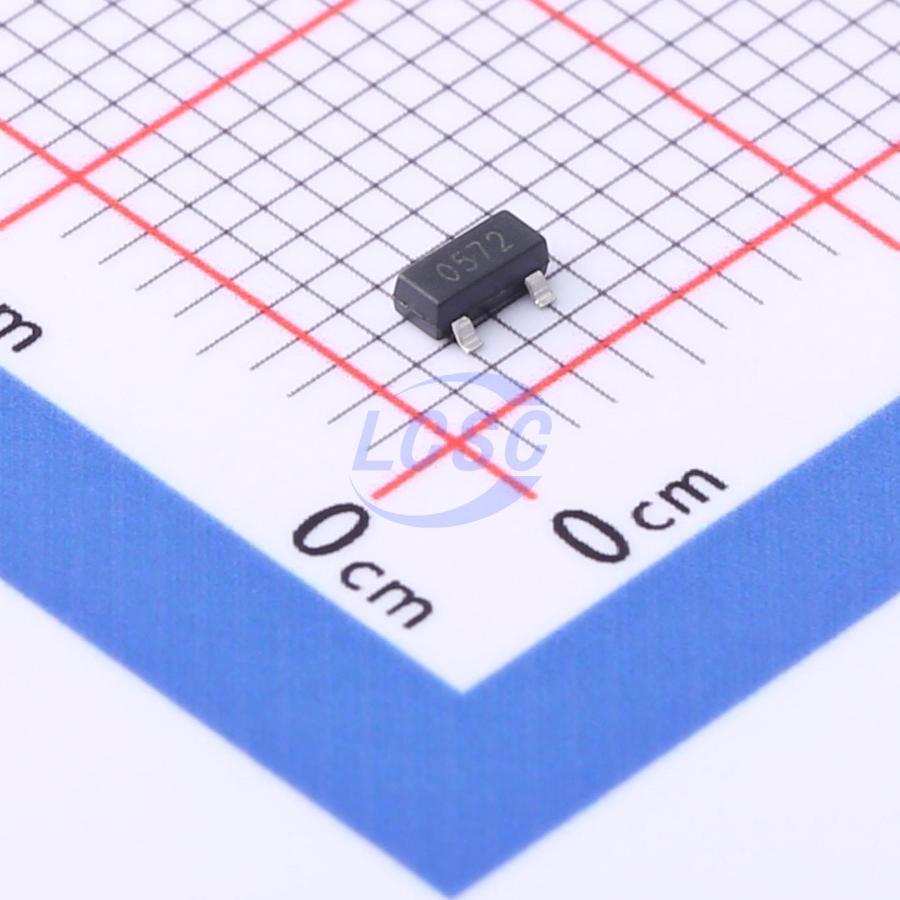

TPE0572BS3-A
10VC Clamp 6A@8/20us Ipp SOT-23
SOT-23RoHSActive
5VWM 10VC SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPE0572BS3-A
- Store part #
- C2858714
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,010 in stock
#C2858714
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.88 | ₹84.40 |
| 50+ | ₹13.75 | ₹687.50 |
| 150+ | ₹12.17 | ₹1,825.50 |
| 500+ | ₹10.99 | ₹5,495.00 |
| 3,000+ | ₹8.57 | ₹25,710.00 |
| 6,000+ | ₹8.11 | ₹48,660.00 |
5 × ₹16.88
₹84.40
excl. GST
₹99.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPE0572BS3-A
₹84.40 for 5 + GST
Specifications
- Clamping Voltage
- 10V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 6A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 60W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 5.6V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 60nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
Applications
- Cellular Handsets and Accessories
- Notebooks and Handhelds
- Portable Instrumentation
- Set Top Box
- Industrial Controls
Key features
- 60W peak pulse power(8/20us)
- Ultra low leakage: nA level
- Operating voltage: 5V
- Low clamping voltage
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000 - 4 - 4 (EFT) 40A (5/50ns)
- IEC61000 - 4 - 5 (Lightning) (8/20μs)
- RoHS Compliant
