TECH PUBLICDatasheet (PDF)

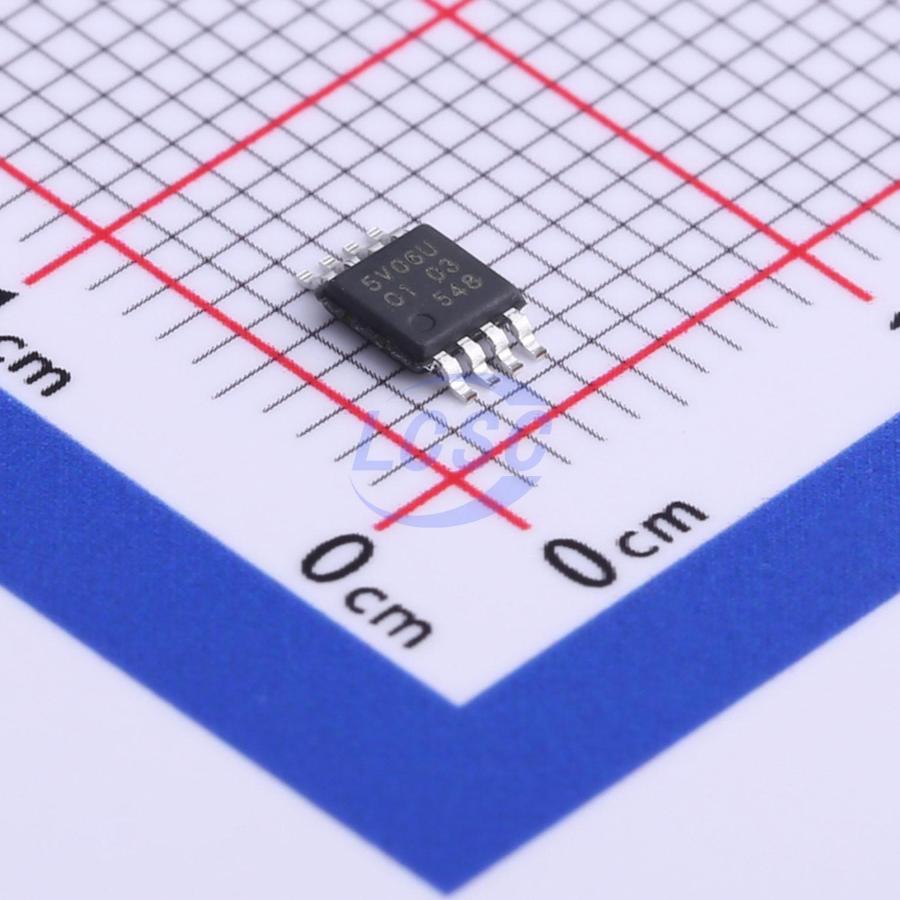

TPE05F6M8
nan
MSOP-8RoHSActive
5VWM 14VC MSOP-8
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPE05F6M8
- Store part #
- C521937
- Package / case
- MSOP-8
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
682 in stock
#C521937
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹60.39 | ₹60.39 |
| 10+ | ₹48.18 | ₹481.80 |
| 30+ | ₹42.96 | ₹1,288.80 |
| 100+ | ₹36.63 | ₹3,663.00 |
| 500+ | ₹29.87 | ₹14,935.00 |
| 1,000+ | ₹28.13 | ₹28,130.00 |
1 × ₹60.39
₹60.39
excl. GST
₹71.26 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TPE05F6M8
₹60.39 for 1 + GST
Specifications
- Clamping Voltage
- 14V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 2.2A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 30W@8/20us
- Number of Channels
- Four channels
- Voltage - Breakdown
- 6V
- type
- ESD
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 20nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.301 g
Overview
Applications
- Computers and peripherals
- Communication systems
- Audio and video equipment
- High speed data lines
- Parallel ports
Key features
- Low capacitance: 12pF
- Ultra low leakage: nA level
- Low operating voltage: 5V
- Low clamping voltage
- Up to 6 lines protects
- Complies with following standards: - IEC 61000-4-2(ESD) immunity test Air discharge: ±15kV Contact discharge: ±8kV
- RoHS Compliant
