TECH PUBLICDatasheet (PDF)

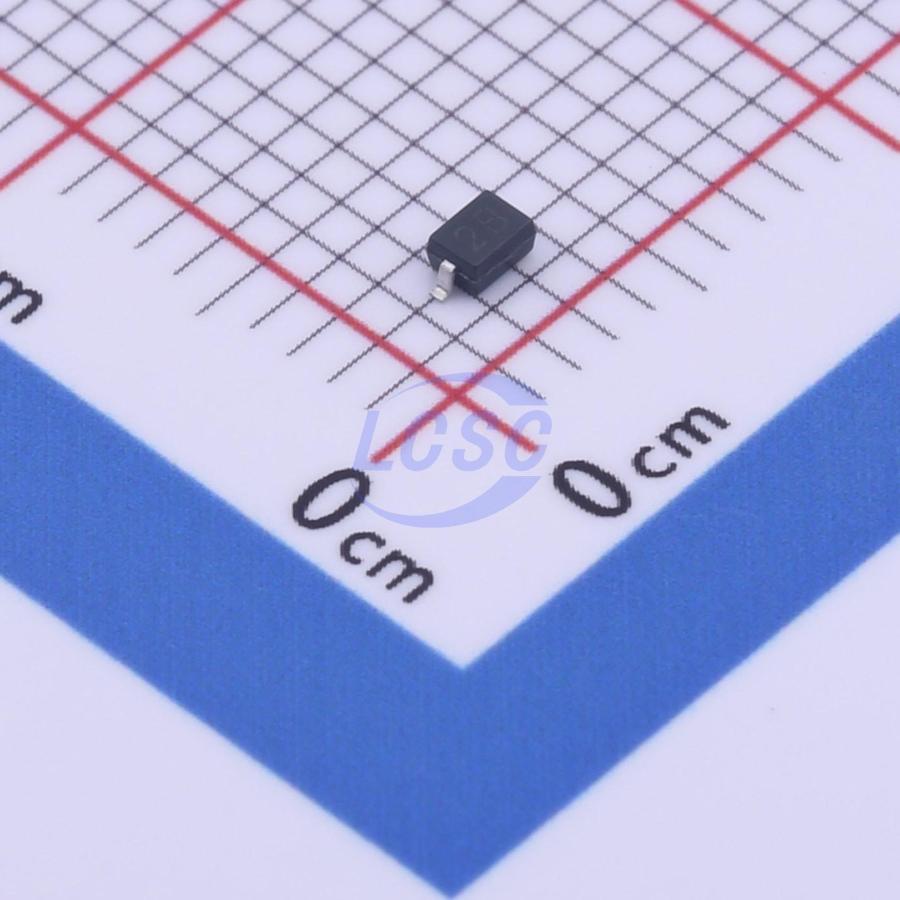

TPE05KHC
9VC Clamp 20A@8/20us Ipp ESD DIODE SOD-323
SOD-323RoHSActive
ESD DIODE 5VWM 9VC SOD-323
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPE05KHC
- Store part #
- C2841390
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,030 in stock
#C2841390
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.47 | ₹64.70 |
| 100+ | ₹5.20 | ₹520.00 |
| 300+ | ₹4.58 | ₹1,374.00 |
| 3,000+ | ₹3.66 | ₹10,980.00 |
| 6,000+ | ₹3.29 | ₹19,740.00 |
| 9,000+ | ₹3.10 | ₹27,900.00 |
10 × ₹6.47
₹64.70
excl. GST
₹76.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPE05KHC
₹64.70 for 10 + GST
Specifications
- Clamping Voltage
- 9V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 20A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 300W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 7V
- type
- ESD
- Reverse Leakage Current (Ir)
- 100nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.028 g
Overview
Applications
- Cellular Handsets and Accessories
- Personal Digital Assistants
- Notebooks and Handhelds
- Portable Instrumentation
- Peripherals
- Pagers
- Desktop and Servers
Key features
- 300 W peak pulse power (8/20μs)
- Protects one data or power line
- Ultra low leakage: nA level
- Operating voltage: 5V
- Ultra low clamping voltage
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30 kV Contact discharge: ±30 kV
- IEC61000-4-4 (Lightning) 20A (8/20ns)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PESD5V0S1BA#C2827694TECH PUBLIC · SOD-323 | TECH PUBLIC | SOD-323 | 5,32,060 | ₹4.76 · 5,32,060 in stock | View |
 | PSD05C#C2827698TECH PUBLIC · SOD-323 | TECH PUBLIC | SOD-323 | 16,500 | ₹5.45 · 16,500 in stock | View |
 | PESD5V0L1BA#C2827691TECH PUBLIC · SOD-323 | TECH PUBLIC | SOD-323 | 24,720 | ₹5.19 · 24,720 in stock | View |
