TECH PUBLICDatasheet (PDF)

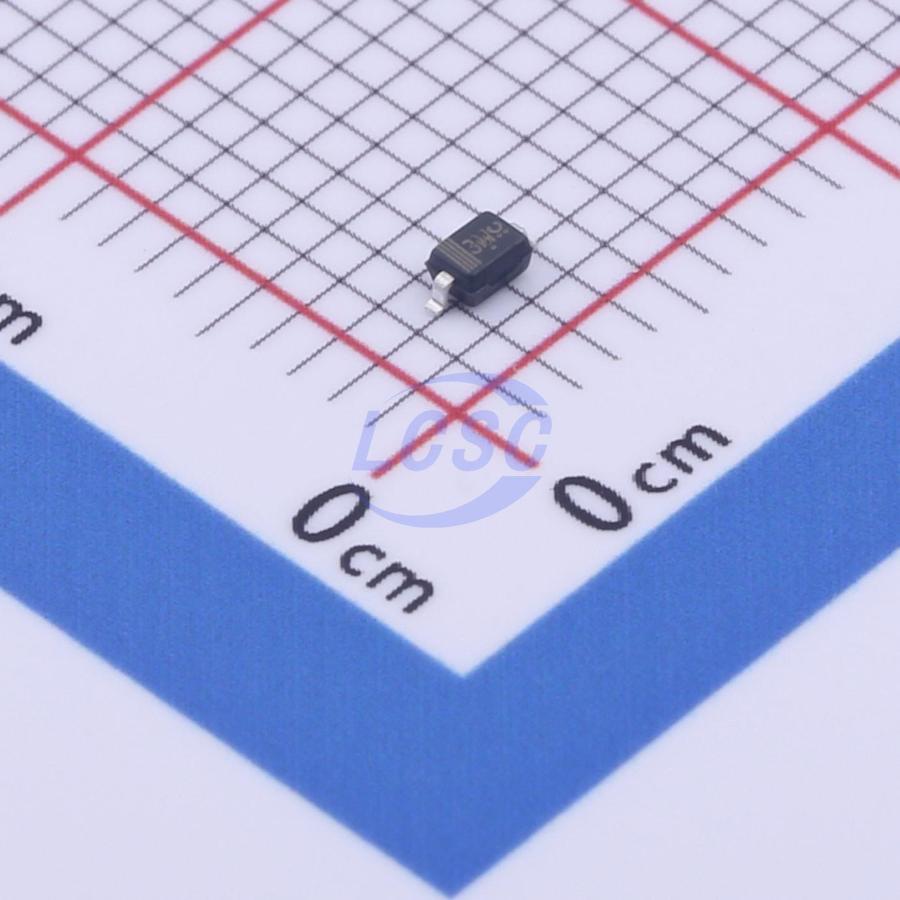

TPE05LC
11VC Clamp 8.5A@8/20us Ipp ESD DIODE SOD-323
SOD-323RoHSActive
ESD DIODE 5VWM 11VC SOD-323
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPE05LC
- Store part #
- C2841407
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
750 in stock
#C2841407
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.69 | ₹86.90 |
| 100+ | ₹6.97 | ₹697.00 |
| 300+ | ₹6.11 | ₹1,833.00 |
| 3,000+ | ₹4.87 | ₹14,610.00 |
| 6,000+ | ₹4.35 | ₹26,100.00 |
| 9,000+ | ₹4.10 | ₹36,900.00 |
10 × ₹8.69
₹86.90
excl. GST
₹102.54 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPE05LC
₹86.90 for 10 + GST
Specifications
- Clamping Voltage
- 11V
- Peak Pulse Current (Ipp)
- 8.5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 200W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 6V
- type
- ESD
- Reverse Leakage Current (Ir)
- 500nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
Applications
- Cellular Handsets and Accessories
- Personal Digital Assistants
- Notebooks and Handhelds
- Portable Instrumentation
- Peripherals
- Pagers Peripherals
- Desktop and Servers
Key features
- 200W peak pulse power (8/20μs)
- Protects one data or power line
- Ultra low leakage: nA level
- Operating voltage: 5V
- Ultra low clamping voltage
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-4 (EFT) 40A (5/50ns)
- RoHS Compliant
