TECH PUBLIC

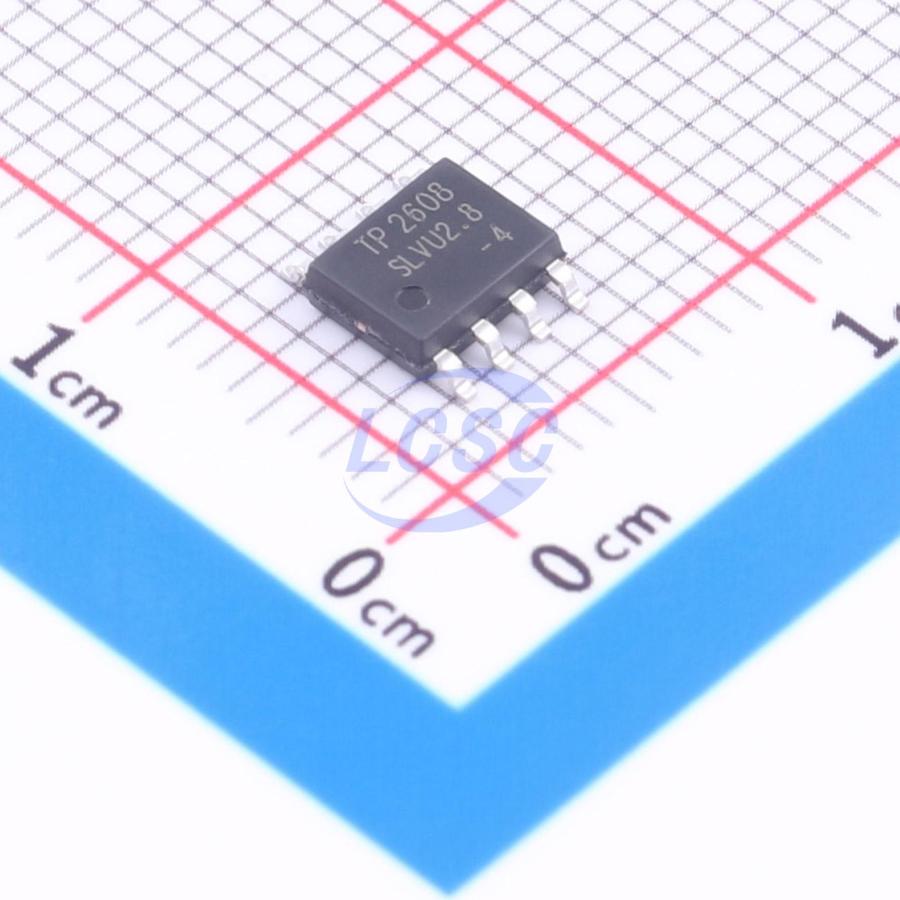

TPE08A2.8L04

10V 10A@8/20us 100W@8/20us 3.5V Bidirectional 2.8V SO-8 TVS Diodes

SO-8RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: TPE08A2.8L04
Store part #: C2835467
Package / case: SO-8
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,500 in stock

#C2835467

Stock & price checked 16 days ago

Quantity	Unit price	Pack price
5+	₹47.43	₹237.15
50+	₹38.12	₹1,906.00
150+	₹34.13	₹5,119.50
500+	₹29.15	₹14,575.00
2,500+	₹23.92	₹59,800.00
5,000+	₹22.60	₹1,13,000.00

Quantity (min 5, multiples of 5)

5 × ₹47.43

₹237.15

excl. GST

₹279.84 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

TPE08A2.8L04

₹237.15 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 10V
Operating Temperature: -40℃~+125℃
Peak Pulse Current (Ipp): 10A@8/20us
Peak Pulse Power Dissipation (Ppp): 100W@8/20us
Number of Channels: Four channels
Voltage - Breakdown: 3.5V
type: ESD
Polarity: Bidirectional
Reverse Leakage Current (Ir): 1uA
Reverse Stand-Off Voltage (Vrwm): 2.8V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.191 g

Overview

Applications

Base Station
Analog Inputs
Switch Systems
10/100/1000 Ethernet
WAN/LAN Equipment
Desktops, Servers, and Notebooks
Low Voltage Interfaces

Key features

Protects two line pairs(four lines)
Ultra low leakage: nA level
Low operating voltage: 2.8V
Low capacitance
Ultra low clamping voltage
JEDEC SO-8 package
Complies with following standards:
IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
IEC61000-4-4 (EFT) 40A (5/50ns)
IEC61000-4-5 (Lightning) 10A (8/20µs)
RoHS Compliant
