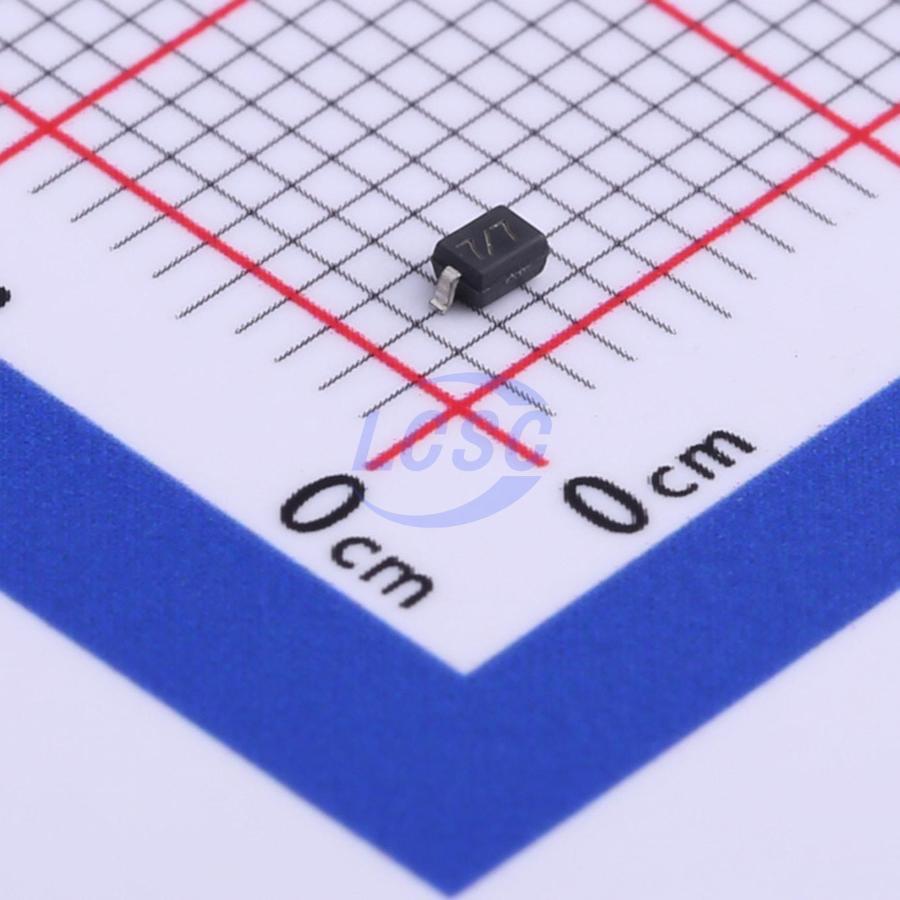

TPE15LC TECH PUBLIC

TPE15LC

30VC Clamp 3A@8/20us Ipp ESD DIODE SOD-323

SOD-323RoHSActive

ESD DIODE 15VWM 30VC SOD-323

Manufacturer: TECH PUBLIC
Manufacturer part #: TPE15LC
Store part #: C521911
Package / case: SOD-323
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,330 in stock

#C521911

Stock & price checked 14 days ago

Quantity	Unit price	Pack price
10+	₹5.31	₹53.10
100+	₹4.27	₹427.00
300+	₹3.74	₹1,122.00
3,000+	₹3.36	₹10,080.00
6,000+	₹3.04	₹18,240.00
9,000+	₹2.88	₹25,920.00

Quantity (min 10, multiples of 10)

10 × ₹5.31

₹53.10

excl. GST

₹62.66 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPE15LC

₹53.10 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 30V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 3A@8/20us
Peak Pulse Power Dissipation (Ppp): 150W@8/20us
Voltage - Breakdown: 16.7V
Number of Channels: 1
type: TVS
Polarity: Bidirectional
Reverse Leakage Current (Ir): 500nA
Reverse Stand-Off Voltage (Vrwm): 15V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.053 g

Overview

Applications

Cellular Handsets and Accessories
Personal Digital Assistants
Notebooks and Handhelds
Portable Instrumentation
Peripherals
Pagers Peripherals
Desktop and Servers

Key features

150W peak pulse power (8/20μs)
Protects one data or power line
Ultralow leakage: nA level
Operating voltage: 15V
Ultra low clamping voltage
Complies with following standards:
IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
IEC61000 - 4 - 4 (EFT) 40A (5/50ns)
RoHS Compliant
