TECH PUBLICDatasheet (PDF)

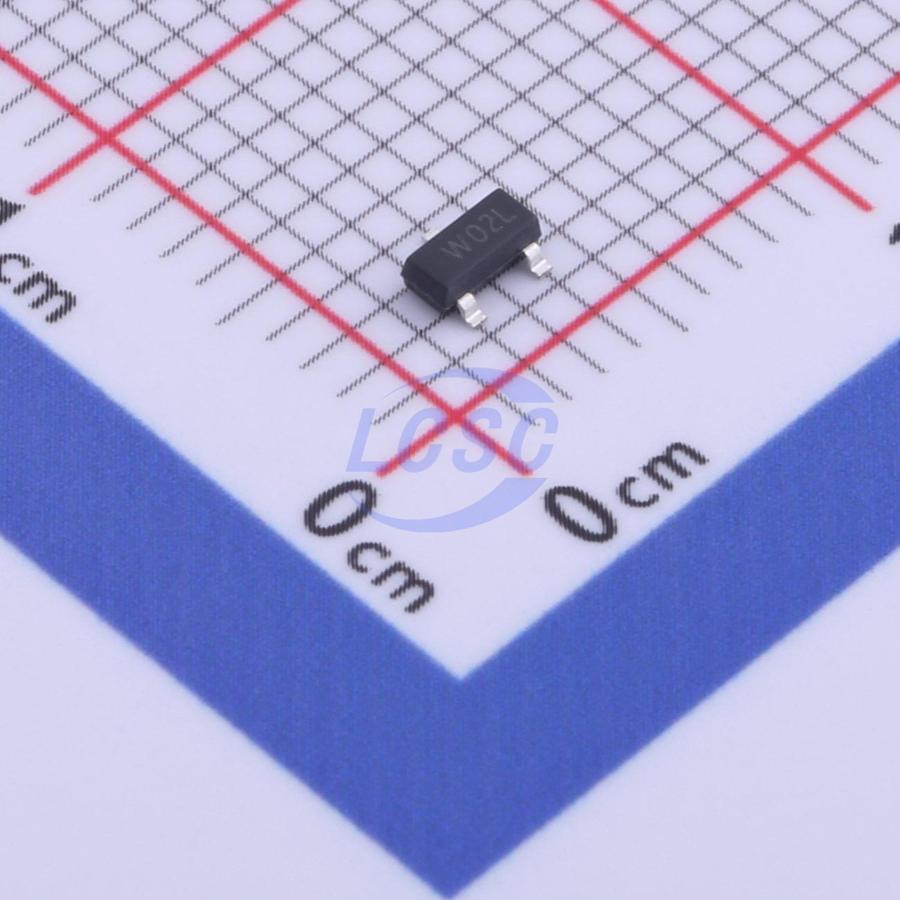

TPE5302F
14VC Clamp 4A@8/20us Ipp SOT-23
SOT-23RoHSActive
5VWM 14VC SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPE5302F
- Store part #
- C2682287
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,010 in stock
#C2682287
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.59 | ₹95.90 |
| 100+ | ₹7.73 | ₹773.00 |
| 300+ | ₹6.79 | ₹2,037.00 |
| 3,000+ | ₹5.44 | ₹16,320.00 |
| 6,000+ | ₹4.87 | ₹29,220.00 |
| 9,000+ | ₹4.59 | ₹41,310.00 |
10 × ₹9.59
₹95.90
excl. GST
₹113.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPE5302F
₹95.90 for 10 + GST
Specifications
- Clamping Voltage
- 14V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 4A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 75W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 6.5V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 80nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.019 g
Overview
Applications
- Laptop Computers
- Cellular Phones
- Digital Cameras
- Personal Digital Assistants (PDAs)
Key features
- Ultra low capacitance: 0.35pF typical
- Ultra low leakage: nA level
- Low operating voltage: 5V
- Low clamping voltage
- Complies with following standards:
- IEC61000 - 4 - 2 (ESD) immunity test Air discharge: ±20kV Contact discharge: ±20kV
- IEC61000 - 4 - 5 (Lightning) 4A (8/20μs)
- RoHS Compliant
- Lead Finish: NiPdAu
