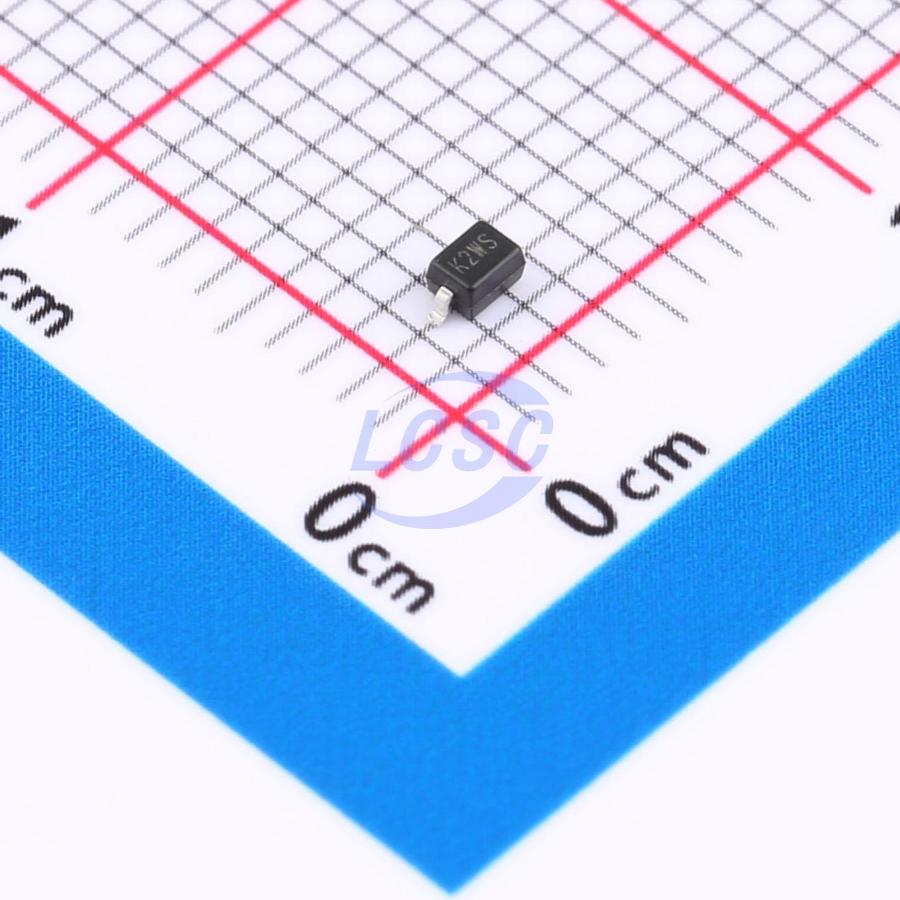

TPESD03K2WS TECH PUBLIC
TECH PUBLIC

TPESD03K2WS

10VC Clamp 6A@8/20us Ipp ESD DIODE SOD-323

SOD-323RoHSActive

ESD DIODE 10VC SOD-323

Manufacturer
TECH PUBLIC
Manufacturer part #
TPESD03K2WS
Store part #
C48586721
Package / case
SOD-323
Category
TVS Diodes
Packaging
Tape & Reel (TR)
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,660 in stock

#C48586721

Stock & price checked 16 days ago

QuantityUnit pricePack price
10+₹6.91₹69.10
100+₹5.56₹556.00
300+₹4.87₹1,461.00
3,000+₹4.37₹13,110.00
6,000+₹3.96₹23,760.00
9,000+₹3.76₹33,840.00

10 × ₹6.91

₹69.10

excl. GST

₹81.54 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 15-18 working days
  • GST invoice with every order
  • Standard pack: 3,000 per reel

TPESD03K2WS

₹69.10 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage
10V
Peak Pulse Current (Ipp)
6A@8/20us
Peak Pulse Power Dissipation (Ppp)
70W@8/20us
Number of Channels
1
Voltage - Breakdown
5V
type
ESD
Polarity
Bidirectional
Reverse Leakage Current (Ir)
500nA
Reverse Stand-Off Voltage (Vrwm)
3.3V

Packaging & compliance

RoHS
RoHS
Lifecycle
Active
Packaging
Tape & Reel (TR)
Standard pack
3,000 / Reel
Sold per
Piece
Minimum order
10 (multiples of 10)
Unit weight
0.028 g

Overview

Applications

  • Mobile phones & accessories
  • Personal digital assistants
  • Laptops & handheld devices
  • Portable instruments
  • USB 2.0 power & data cables

Key features

  • Low operating voltage: 3.3V
  • Ultra-low capacitance: 0.35pF (typical)
  • Ultra-low leakage current: nA level
  • Low clamping voltage
  • Compliant with IEC 61000-4-2 (ESD) immunity test, air discharge: ±30kV, contact discharge: ±30kV
  • Compliant with IEC 61000-4-4 (EFT) 40A (5/50ns)
  • Compliant with IEC 61000-4-5 (Lightning Surge) 6A (8/20μs)
  • 2-pin leadless package
  • Typical response time less than 1 ns
