TECH PUBLICDatasheet (PDF)

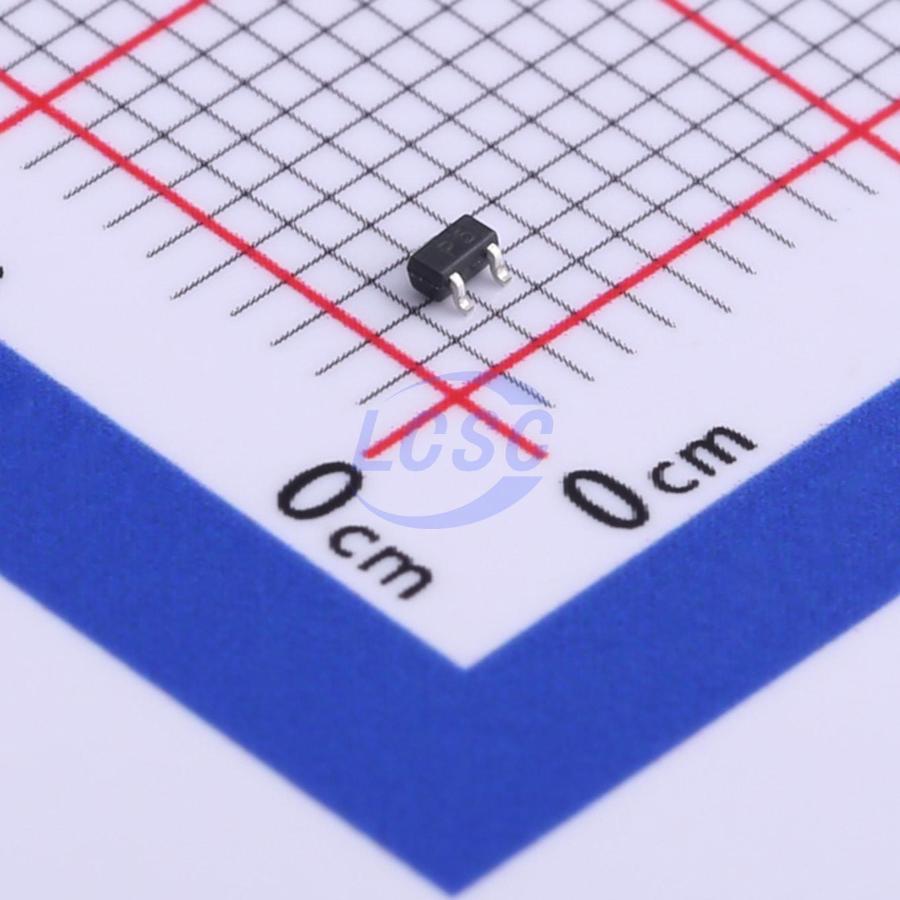

TPESD0502B
23VC Clamp 4A@8/20us Ipp ESD DIODE SOT-523
SOT-523RoHSActive
ESD DIODE 5VWM 23VC SOT-523
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPESD0502B
- Store part #
- C521938
- Package / case
- SOT-523
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,320 in stock
#C521938
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.71 | ₹77.10 |
| 100+ | ₹6.20 | ₹620.00 |
| 300+ | ₹5.45 | ₹1,635.00 |
| 3,000+ | ₹4.71 | ₹14,130.00 |
| 6,000+ | ₹4.26 | ₹25,560.00 |
| 9,000+ | ₹4.04 | ₹36,360.00 |
10 × ₹7.71
₹77.10
excl. GST
₹90.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPESD0502B
₹77.10 for 10 + GST
Specifications
- Clamping Voltage
- 23V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 4A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 100W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 6V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 80nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
Applications
- Cellular Handsets and Accessories
- Notebooks and Handhelds
- Portable Instrumentation
- Set Top Box
- Industrial Controls
Key features
- Ultra low capacitance: 0.35pF typical
- Ultra low leakage: nA level
- Low operating voltage: 5V
- Low clamping voltage
- 2-pin leadless package
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-5 (Lightning) 4A (8/20 μs)
- RoHS Compliant
- Lead Finish: NiPdAu
