TECH PUBLICDatasheet (PDF)

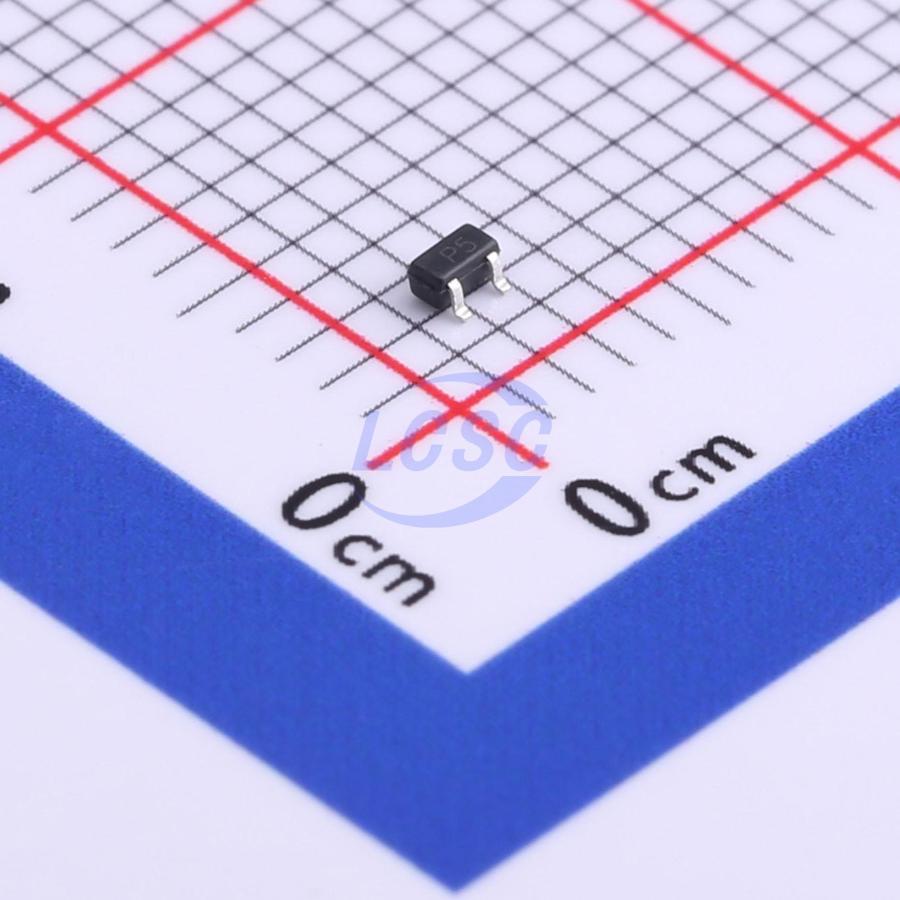

TPESD0512R3
25VC Clamp 4A@8/20us Ipp ESD DIODE SOT-523
SOT-523RoHSActive
ESD DIODE 5VWM 25VC SOT-523
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPESD0512R3
- Store part #
- C708763
- Package / case
- SOT-523
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,630 in stock
#C708763
Stock & price checked 16 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.47 | ₹74.70 |
| 100+ | ₹6.01 | ₹601.00 |
| 300+ | ₹5.28 | ₹1,584.00 |
| 3,000+ | ₹4.23 | ₹12,690.00 |
| 6,000+ | ₹3.80 | ₹22,800.00 |
| 9,000+ | ₹3.59 | ₹32,310.00 |
10 × ₹7.47
₹74.70
excl. GST
₹88.15 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPESD0512R3
₹74.70 for 10 + GST
Specifications
- Clamping Voltage
- 25V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 4A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 100W@8/20us
- Voltage - Breakdown
- 6V
- Number of Channels
- 2
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 200nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
Applications
- Laptop Computers
- Cellular Phones
- Digital Cameras
- Personal Digital Assistants (PDAs)
Key features
- Protects two I/O line
- Ultra-Low capacitance (<0.6pF)
- Low Clamping Voltage
- Working Voltage: 5V
- Low Leakage Current
- IEC 61000-4-2 (ESD) ± 20kV (air), ± 15kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
