TECH PUBLICDatasheet (PDF)

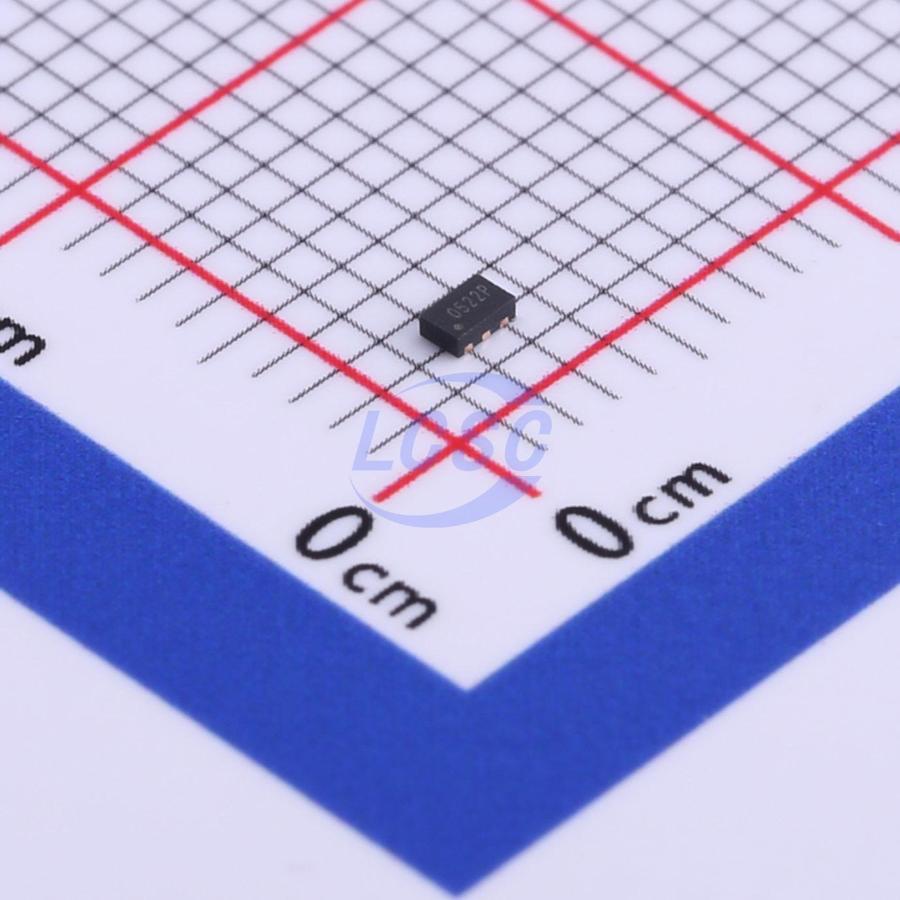

TPESD0522P
25VC Clamp ESD DIODE UDFN-6(1x1.6)
UDFN-6(1x1.6)RoHSActive
ESD DIODE 5VWM 25VC UDFN-6(1x1.6)
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPESD0522P
- Store part #
- C521925
- Package / case
- UDFN-6(1x1.6)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,070 in stock
#C521925
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.72 | ₹68.60 |
| 50+ | ₹10.90 | ₹545.00 |
| 150+ | ₹9.50 | ₹1,425.00 |
| 500+ | ₹8.44 | ₹4,220.00 |
| 3,000+ | ₹7.59 | ₹22,770.00 |
| 6,000+ | ₹7.17 | ₹43,020.00 |
5 × ₹13.72
₹68.60
excl. GST
₹80.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPESD0522P
₹68.60 for 5 + GST
Specifications
- Clamping Voltage
- 25V
- Peak Pulse Current (Ipp)
- 5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 150W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 6V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 500nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
Applications
- USB 2.0
- HDMI 1.3
- SATA and eSATA
- DVI
- IEEE 1394
- PCI Express
- Portable Electronics
- Notebooks
Key features
- Ultra Low Capacitance 0.5pF typical
- Low operating Voltage: 5.0 V
- Low clamping voltage
- IEC61000−4−4 (EFT) 40A (5/50ns)
- IEC61000-4-5(Lightning)5A(5/50ns)
