TECH PUBLIC

TPESD0524J

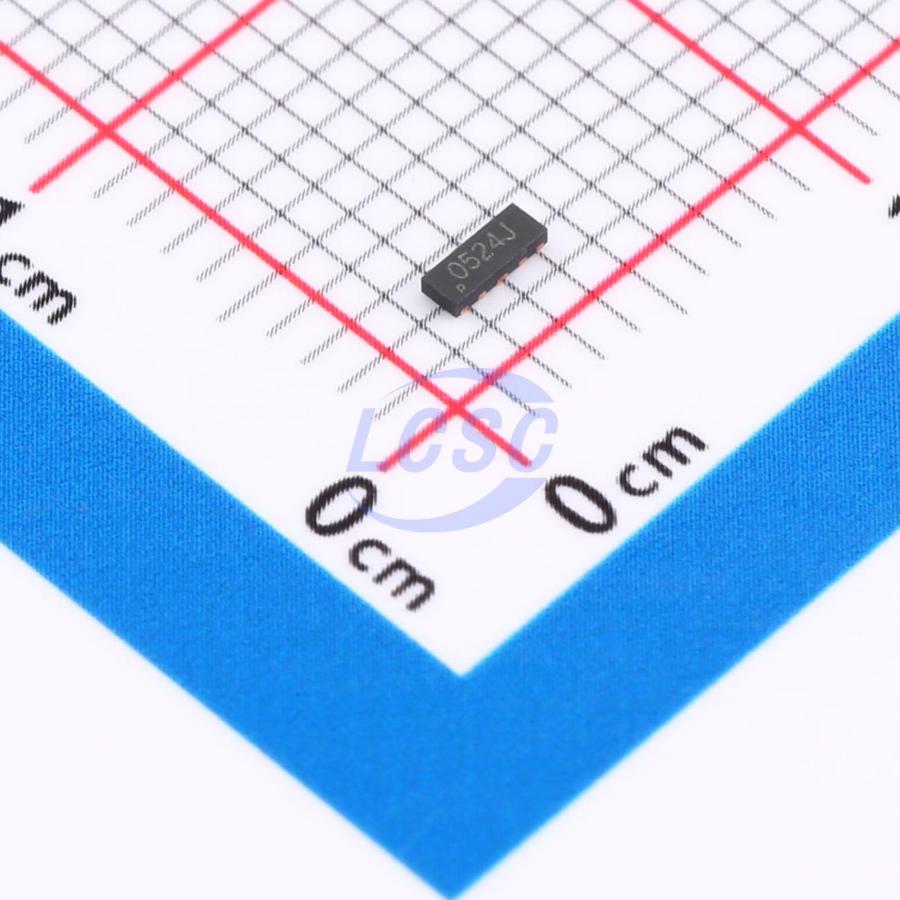

20VC Clamp 4.5A@8/20us Ipp ESD DIODE DFN2710-8

DFN2710-8RoHSActive

ESD DIODE 5VWM 20VC DFN2710-8

Manufacturer: TECH PUBLIC
Manufacturer part #: TPESD0524J
Store part #: C2901327
Package / case: DFN2710-8
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,015 in stock

#C2901327

Stock & price checked 12 days ago

Quantity	Unit price	Pack price
5+	₹21.34	₹106.70
50+	₹17.17	₹858.50
150+	₹15.08	₹2,262.00
500+	₹13.52	₹6,760.00
3,000+	₹10.85	₹32,550.00
6,000+	₹10.21	₹61,260.00

Quantity (min 5, multiples of 5)

5 × ₹21.34

₹106.70

excl. GST

₹125.91 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPESD0524J

₹106.70 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 20V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 4.5A@8/20us
Peak Pulse Power Dissipation (Ppp): 120W@8/20us
Number of Channels: Four channels
Voltage - Breakdown: 7V
type: TVS
Polarity: Unidirectional
Reverse Leakage Current (Ir): 100nA
Reverse Stand-Off Voltage (Vrwm): 5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.031 g

Overview

Applications

High Definition Multimedia Interface (HDMI)
Digital Visual Interface (DVI)
Unified Display Interface (UDI)
MDDI Ports
PCI Express
Serial ATA

Key features

Ultra low capacitance: 0.3pF typical (/O to I/O)
Ultralow leakage: nA level
Low operating voltage: 5V
Low clamping voltage
Up to 4 data lines and one power line protects
Complies with following standards:
IEC 61000-4-2 (ESD) immunity test Air discharge: ±25kV Contact discharge: ±20kV
IEC 61000-4-4 (EFT) 40A (5/50ns)
IEC 61000-4-5 (Lightning) : 4.5A (8/20μs)
