TECH PUBLICDatasheet (PDF)

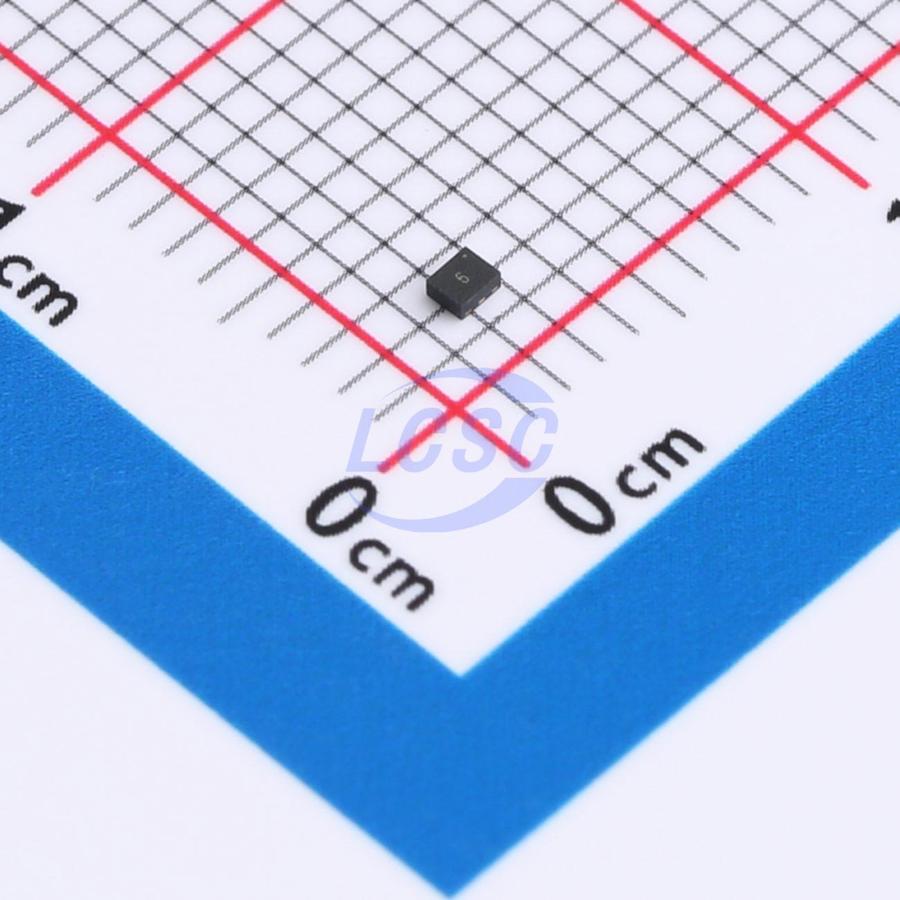

TPESD0532N
15VC Clamp 3A@8/20us Ipp DFN-6(1.2x1)
DFN-6(1.2x1)RoHSActive
5VWM 15VC DFN-6(1.2x1)
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPESD0532N
- Store part #
- C23380915
- Package / case
- DFN-6(1.2x1)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,515 in stock
#C23380915
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.67 | ₹68.35 |
| 50+ | ₹10.81 | ₹540.50 |
| 150+ | ₹9.38 | ₹1,407.00 |
| 500+ | ₹8.31 | ₹4,155.00 |
| 3,000+ | ₹7.45 | ₹22,350.00 |
| 6,000+ | ₹7.01 | ₹42,060.00 |
5 × ₹13.67
₹68.35
excl. GST
₹80.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPESD0532N
₹68.35 for 5 + GST
Specifications
- Clamping Voltage
- 15V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 3A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 50W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 6V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.026 g
Overview
Applications
- USB
- MMC Port
- Serial ATA
- Video Port
Key features
- Ultra low capacitance: 0.3pF typical(IO to I0)
- Ultra low leakage: nA level
- Low operating voltage: 5V
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±20kV Contact discharge: ±15kV
- IEC61000-4-5 (Lightning) 3A (8/20μs)
- RoHS Compliant Lead Finish: NiPdAu
