TECH PUBLICDatasheet (PDF)

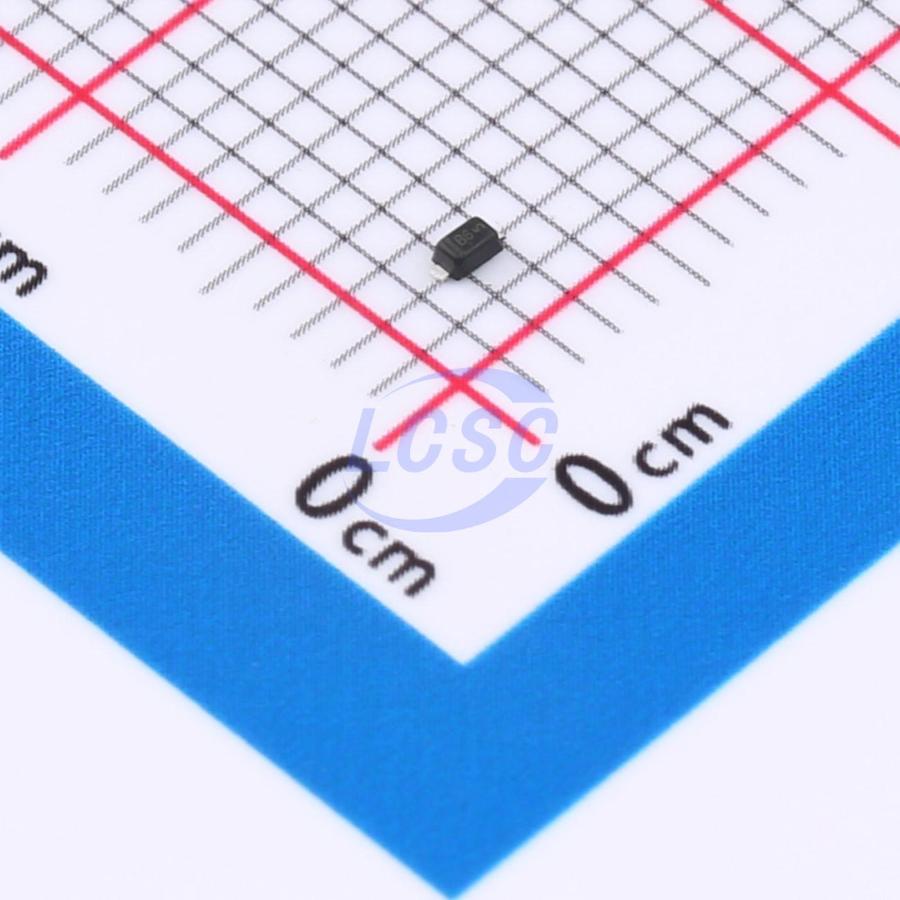

TPESD05B20AWT
13VC Clamp 20A@8/20us Ipp ESD DIODE SOD-523
SOD-523RoHSActive
ESD DIODE 5VWM 13VC SOD-523
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPESD05B20AWT
- Store part #
- C47117601
- Package / case
- SOD-523
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,780 in stock
#C47117601
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.57 | ₹105.70 |
| 100+ | ₹8.55 | ₹855.00 |
| 300+ | ₹7.53 | ₹2,259.00 |
| 3,000+ | ₹6.76 | ₹20,280.00 |
| 6,000+ | ₹6.15 | ₹36,900.00 |
| 9,000+ | ₹5.85 | ₹52,650.00 |
10 × ₹10.57
₹105.70
excl. GST
₹124.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPESD05B20AWT
₹105.70 for 10 + GST
Specifications
- Clamping Voltage
- 13V
- Peak Pulse Current (Ipp)
- 20A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 260W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 6.5V
- type
- ESD
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.014 g
