TECH PUBLICDatasheet (PDF)

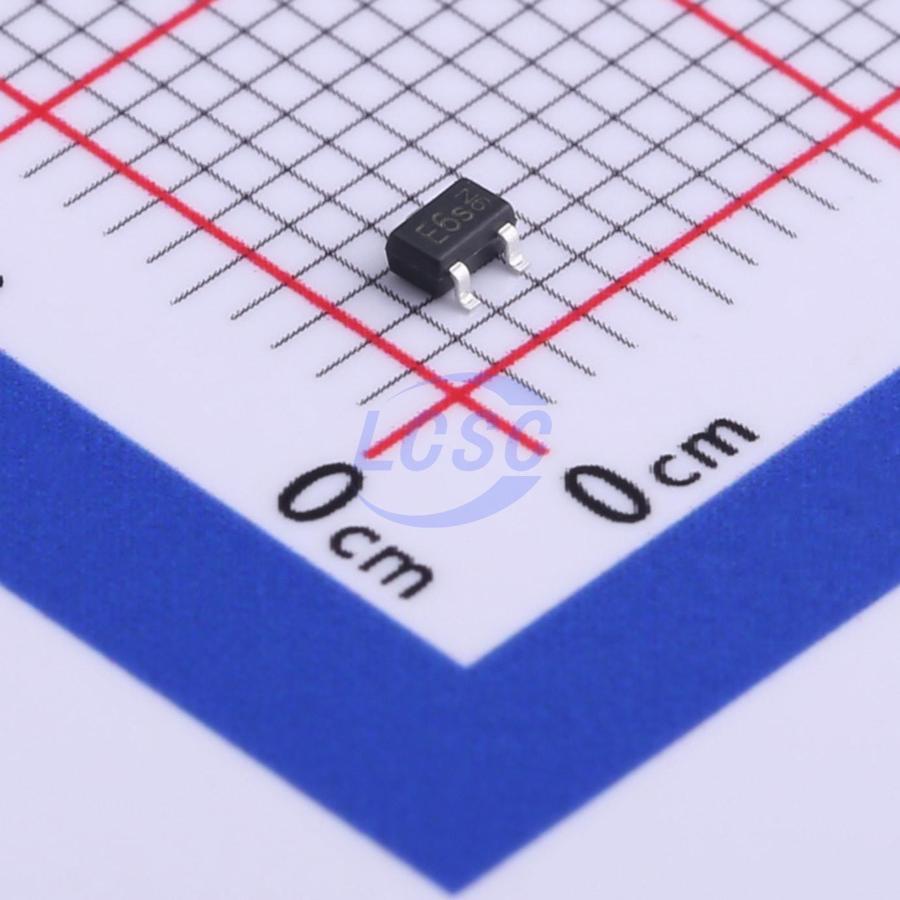

TPESD1P0RFW
15VC Clamp 10A@8/20us Ipp ESD DIODE SOT-323
SOT-323RoHSActive
ESD DIODE 70VWM 15VC SOT-323
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPESD1P0RFW
- Store part #
- C521956
- Package / case
- SOT-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,350 in stock
#C521956
Stock & price checked 15 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.73 | ₹98.65 |
| 50+ | ₹16.06 | ₹803.00 |
| 150+ | ₹14.24 | ₹2,136.00 |
| 500+ | ₹12.87 | ₹6,435.00 |
| 3,000+ | ₹9.09 | ₹27,270.00 |
| 6,000+ | ₹8.53 | ₹51,180.00 |
5 × ₹19.73
₹98.65
excl. GST
₹116.41 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPESD1P0RFW
₹98.65 for 5 + GST
Specifications
- Clamping Voltage
- 15V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 10A@8/20us
- Number of Channels
- 2
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 70V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
Applications
- Cell Phones
- Audio Interface Connections
- Consumer Electronics (DVR, Set-Top Box, TV)
- Industrial Interfaces (RS-232, RS-485, RS-422, LVDS)
Key features
- Ultra low leakage: nA level
- Operating voltage: 70V
- Low clamping voltage
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-4 (EFT) 40A (5/50ns)
- IEC61000-4-5 (Lightning) 10A (8/20μs)
- RoHS Compliant
