TECH PUBLIC

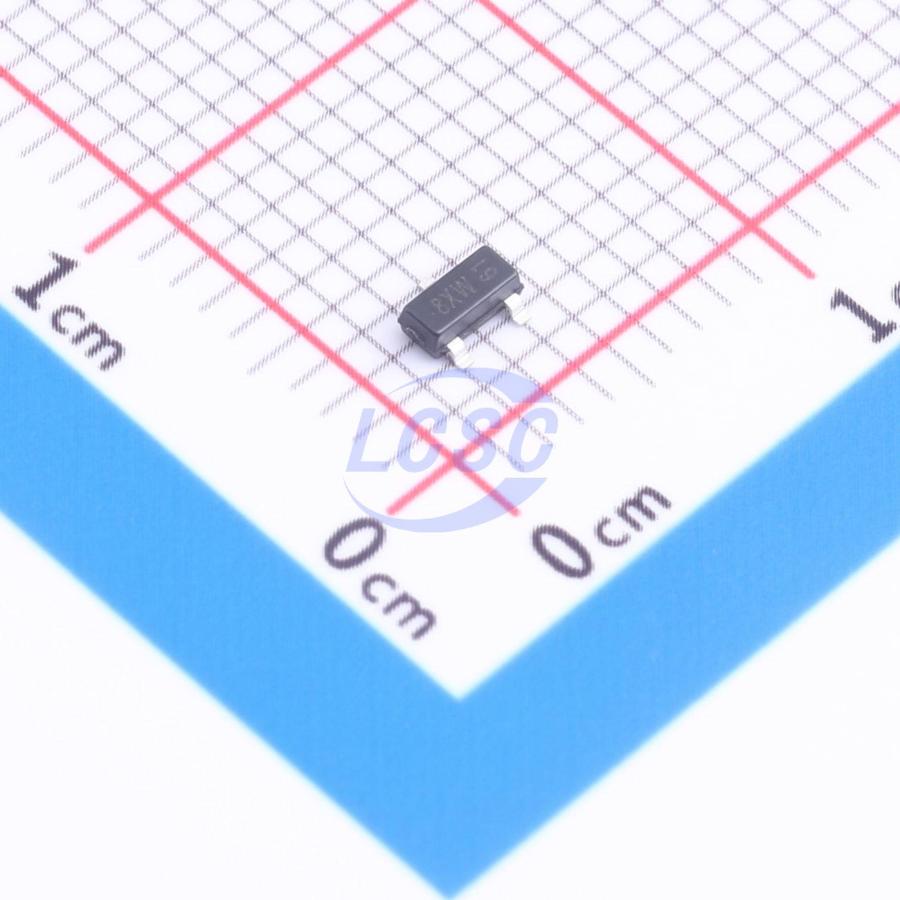

TPESD2CANFD36VT-QR

72V 2A@8/20us 150W@8/20us 44V Bidirectional 36V SOT-23 TVS Diodes

SOT-23RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: TPESD2CANFD36VT-QR
Store part #: C53340931
Package / case: SOT-23
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,195 in stock

#C53340931

Stock & price checked 12 days ago

Quantity	Unit price	Pack price
5+	₹10.62	₹53.10
50+	₹8.39	₹419.50
150+	₹7.26	₹1,089.00
500+	₹6.43	₹3,215.00
3,000+	₹5.76	₹17,280.00
6,000+	₹5.42	₹32,520.00

Quantity (min 5, multiples of 5)

5 × ₹10.62

₹53.10

excl. GST

₹62.66 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPESD2CANFD36VT-QR

₹53.10 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 72V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 2A@8/20us
Peak Pulse Power Dissipation (Ppp): 150W@8/20us
Voltage - Breakdown: 44V
Number of Channels: 2
type: ESD
Reverse Leakage Current (Ir): 100nA
Polarity: Bidirectional
Reverse Stand-Off Voltage (Vrwm): 36V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.067 g

Overview

Applications

Industrial control
Personal digital assistants
Laptop and handheld devices
CAN bus protection
Automotive applications

Key features

Low operating voltage: 36V
Ultra-low capacitance: 4pF
Ultra-low leakage: nanoamp level
Low clamping voltage
IEC 61000-4-2 (ESD) immunity test: air discharge ±20kV, contact discharge ±20kV
IEC 61000-4-4 (EFT) 40A (5/50ns)
3-pin lead-free package
Lead-free devices
Response time typically < 1 ns
Package: SOT-23
Lead finish: matte tin
Molding compound: "green" molding compound
IEC 61000-4-2 (ESD) immunity test
