TECH PUBLIC

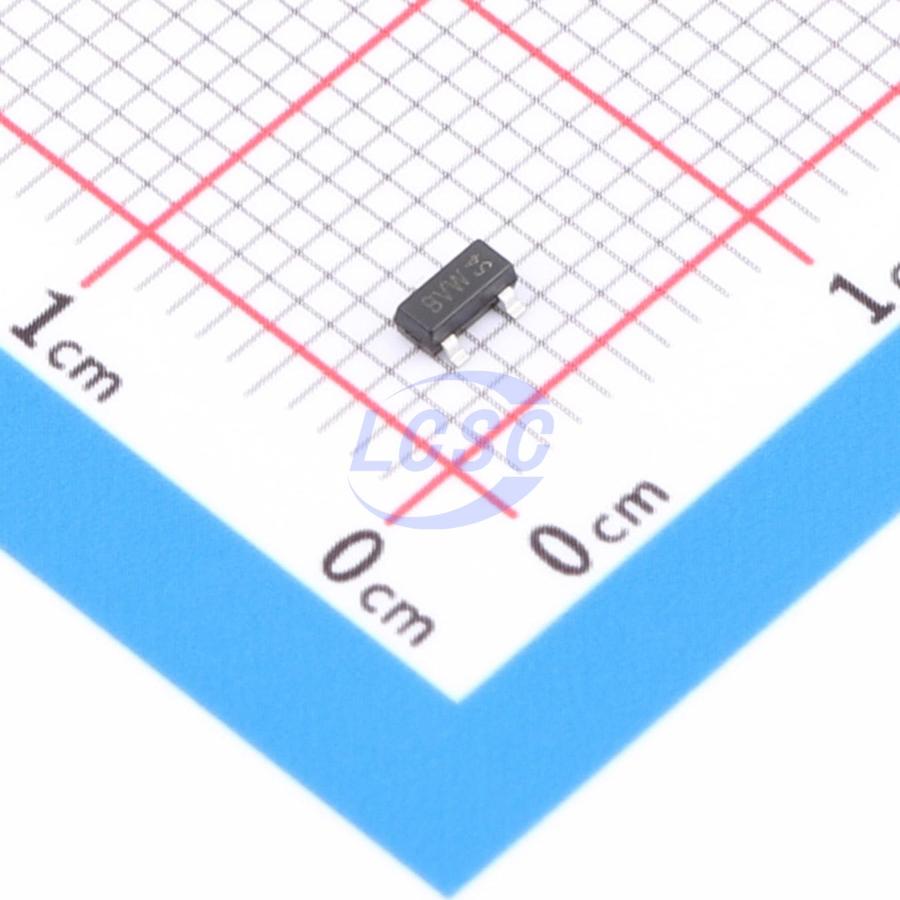

TPESD2IVN24T-QR

40V 4A@8/20us 140W@8/20us 26.7V Bidirectional 24V SOT-23 TVS Diodes

SOT-23RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: TPESD2IVN24T-QR
Store part #: C54195059
Package / case: SOT-23
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,800 in stock

#C54195059

Stock & price checked 15 days ago

Quantity	Unit price	Pack price
5+	₹13.27	₹66.35
50+	₹10.48	₹524.00
150+	₹9.08	₹1,362.00
500+	₹8.03	₹4,015.00
3,000+	₹7.20	₹21,600.00
6,000+	₹6.77	₹40,620.00

Quantity (min 5, multiples of 5)

5 × ₹13.27

₹66.35

excl. GST

₹78.29 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPESD2IVN24T-QR

₹66.35 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 40V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 4A@8/20us
Peak Pulse Power Dissipation (Ppp): 140W@8/20us
Number of Channels: 2
Voltage - Breakdown: 26.7V
type: TVS
Polarity: Bidirectional
Reverse Leakage Current (Ir): 80nA
Reverse Stand-Off Voltage (Vrwm): 24V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 1 g

Overview

Applications

Mobile phones and accessories
Laptops and handheld devices
Portable instruments
Set-top boxes
Industrial control
CAN bus protection
Automotive applications

Key features

150W peak pulse power (8/20μs)
Ultra-low leakage: nA-level
Operating voltage: 24V
Low clamping voltage
Compliant with the following standards:
IEC 61000-4-2 (ESD) immunity test: air discharge ±30kV, contact discharge ±30kV
IEC 61000-4-4 (EFT) 40A (5/50ns)
IEC 61000-4-5 (Surge) 4A (8/20μs)
RoHS compliant
Package: SOT-23
Lead finish: Matte tin
Case material: "Green" molding compound
UL flammability rating: 94V-0
Moisture sensitivity: Level 3 per J STD 020
Packaging quantity: 3000 pcs / 7-inch tape reel
