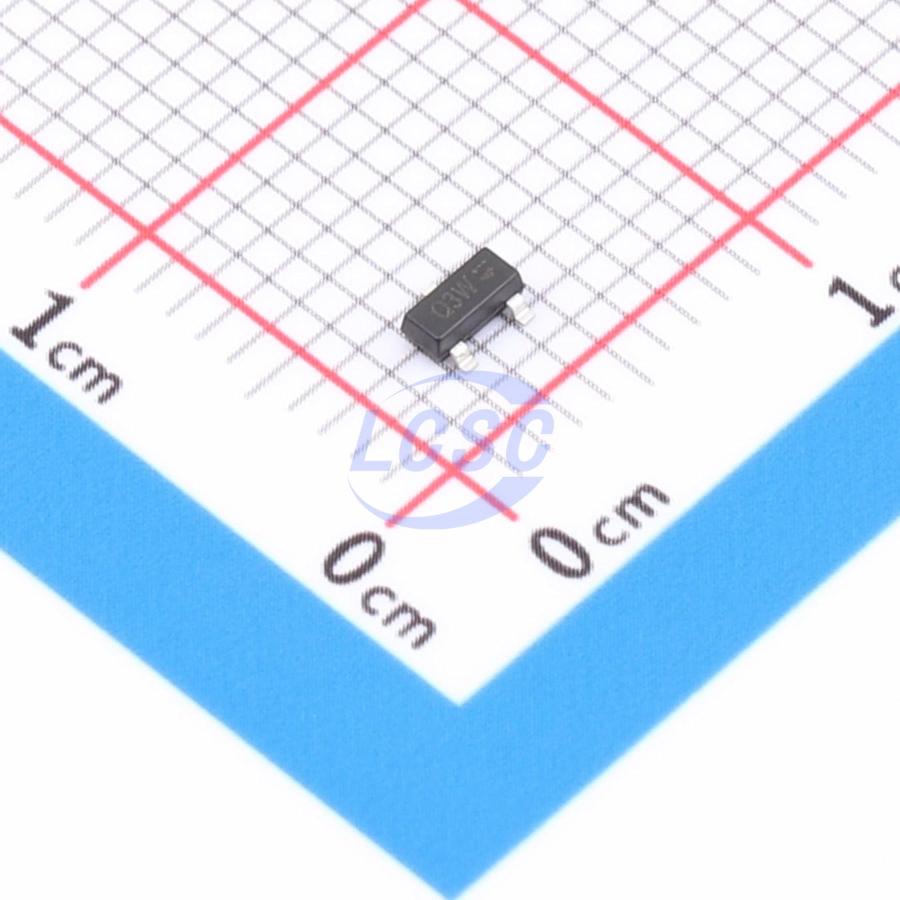

TPESD2USB3UX-TR TECH PUBLIC

TPESD2USB3UX-TR

15V 4A@8/20us 100W@8/20us 4.2V Unidirectional 3.3V SOT-23-3 TVS Diodes

SOT-23-3RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: TPESD2USB3UX-TR
Store part #: C54195060
Package / case: SOT-23-3
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,325 in stock

#C54195060

Stock & price checked 12 days ago

Quantity	Unit price	Pack price
5+	₹10.73	₹53.65
50+	₹8.44	₹422.00
150+	₹7.30	₹1,095.00
500+	₹6.44	₹3,220.00
3,000+	₹5.76	₹17,280.00
6,000+	₹5.40	₹32,400.00

Quantity (min 5, multiples of 5)

5 × ₹10.73

₹53.65

excl. GST

₹63.31 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPESD2USB3UX-TR

₹53.65 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 15V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 4A@8/20us
Peak Pulse Power Dissipation (Ppp): 100W@8/20us
Voltage - Breakdown: 4.2V
Number of Channels: 2
type: ESD
Polarity: Unidirectional
Reverse Leakage Current (Ir): 500nA
Reverse Stand-Off Voltage (Vrwm): 3.3V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 1 g

Overview

Applications

Automotive audio/video monitors, displays, and cameras
USB2.0, HDMI, DisplayPort
eSATA and LVDS

Key features

Ultra-low capacitance: 0.35pF typical
Ultra-low leakage: nanoamp-level
Low operating voltage: 3.3V
Low clamping voltage
2-pin lead-free package
Compliant with the following standards:
IEC 61000-4-2 (ESD) immunity test: Air discharge: ±20kV, Contact discharge: ±15kV
IEC 61000-4-5 (Lightning Surge): 4A (8/20μs)
RoHS compliant
Lead finish: Nickel Palladium Gold
