TECH PUBLICDatasheet (PDF)

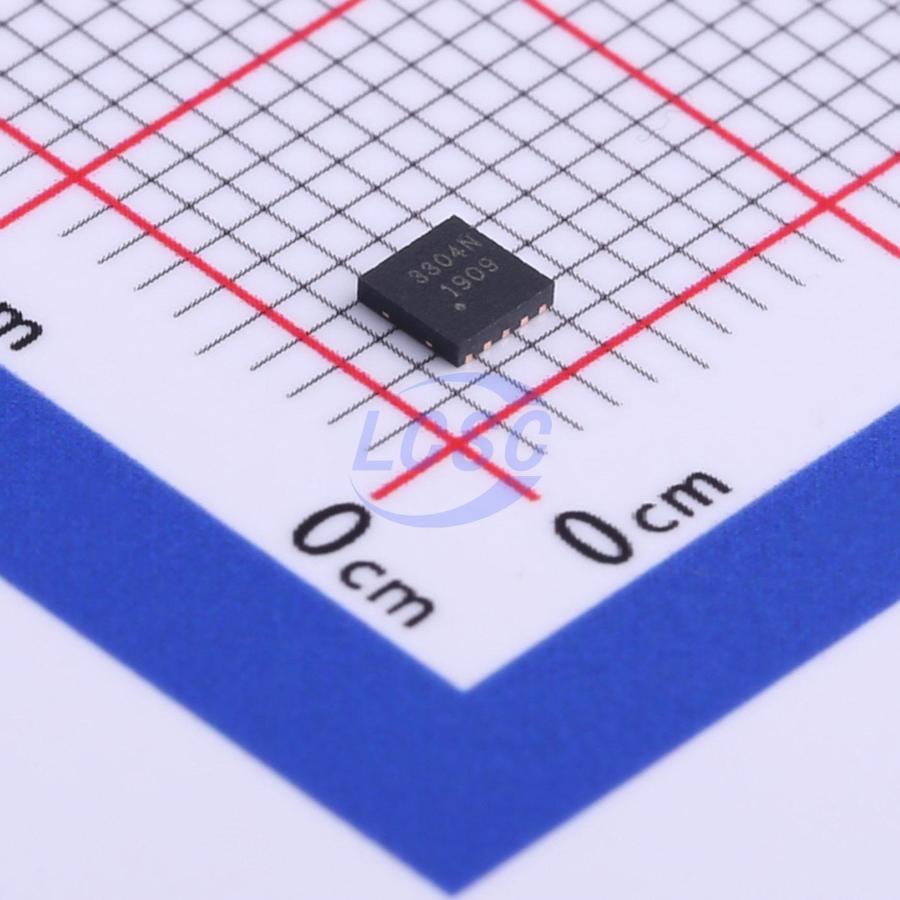

TPESD3304N
18VC Clamp ESD DIODE DFN2626-10-EP
DFN2626-10-EPRoHSActive
ESD DIODE 3.3VWM 18VC DFN2626-10-EP
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPESD3304N
- Store part #
- C521922
- Package / case
- DFN2626-10-EP
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,125 in stock
#C521922
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.02 | ₹215.10 |
| 50+ | ₹34.81 | ₹1,740.50 |
| 150+ | ₹31.29 | ₹4,693.50 |
| 500+ | ₹26.90 | ₹13,450.00 |
| 3,000+ | ₹22.29 | ₹66,870.00 |
| 6,000+ | ₹21.12 | ₹1,26,720.00 |
5 × ₹43.02
₹215.10
excl. GST
₹253.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPESD3304N
₹215.10 for 5 + GST
Specifications
- Clamping Voltage
- 18V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Power Dissipation (Ppp)
- 450W@8/20us
- Number of Channels
- Four channels
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 500nA
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.07 g
Overview
Applications
- Analog Video
- RJ-45 Connectors
- T1/E1 Secondary Protection
- T3/E3 Secondary Protection
- 10/100/1000 Ethernet
Key features
- Ultra low leakage: nA level
- Ultra low operating voltage: 3.3V
- Ultra low clamping voltage
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±25kV Contact discharge: ±15kV
- IEC61000-4-4 (EFT) 40A (5/50ns)
- IEC61000-4-5 (Lightning) 25A (8/20μs)
- RoHS Compliant
