TECH PUBLICDatasheet (PDF)

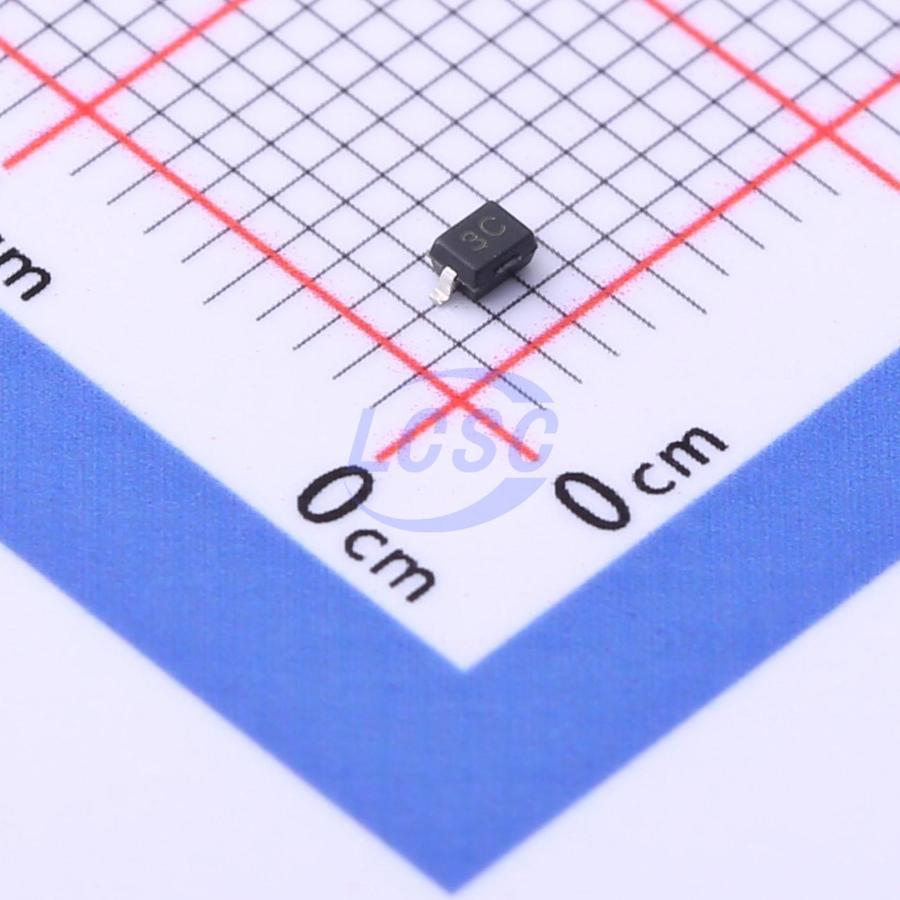

TPESD3C031L
14VC Clamp 4A@8/20us Ipp SOD-323
SOD-323RoHSActive
3.3VWM 14VC SOD-323
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPESD3C031L
- Store part #
- C2937024
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
920 in stock
#C2937024
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.68 | ₹93.60 |
| 200+ | ₹3.69 | ₹738.00 |
| 600+ | ₹3.14 | ₹1,884.00 |
| 3,000+ | ₹2.53 | ₹7,590.00 |
| 9,000+ | ₹2.24 | ₹20,160.00 |
| 21,000+ | ₹2.08 | ₹43,680.00 |
20 × ₹4.68
₹93.60
excl. GST
₹110.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPESD3C031L
₹93.60 for 20 + GST
Specifications
- Clamping Voltage
- 14V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 4A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 100W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 5V
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 80nA
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.053 g
Overview
Applications
- Mobile Phones and Accessories
- Battery Protection
- USB VBus Power Line Protection
- Hand Held Portable Applications
Key features
- 100W peak pulse power (8/20 μs)
- Operating voltage: 3.3V
- Ultra low clamping voltage
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±20 kV Contact discharge: ±20 kV
- IEC61000 - 4 - 5 (SURGE) 4A (8/20us)
- Ultralow leakage: nA level
- UL Flammability Classification Rating 94V - 0
- Moisture Sensitivity: Level 3 per J - STD - 020
