TECH PUBLICDatasheet (PDF)

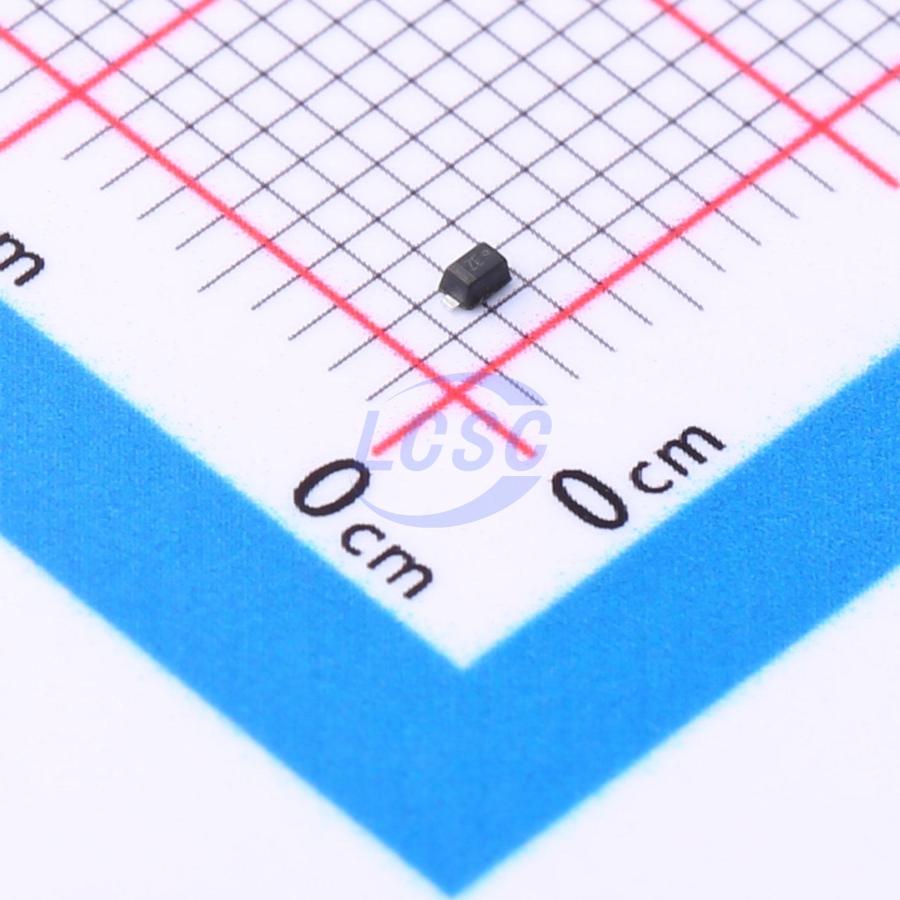

TPESD3V3U1UB
14VC Clamp 4A@8/20us Ipp ESD DIODE SOD-523
SOD-523RoHSActive
ESD DIODE 3.3VWM 14VC SOD-523
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPESD3V3U1UB
- Store part #
- C2905628
- Package / case
- SOD-523
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,260 in stock
#C2905628
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.76 | ₹115.20 |
| 200+ | ₹4.59 | ₹918.00 |
| 600+ | ₹3.96 | ₹2,376.00 |
| 3,000+ | ₹3.27 | ₹9,810.00 |
| 9,000+ | ₹2.94 | ₹26,460.00 |
| 21,000+ | ₹2.75 | ₹57,750.00 |
20 × ₹5.76
₹115.20
excl. GST
₹135.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPESD3V3U1UB
₹115.20 for 20 + GST
Specifications
- Clamping Voltage
- 14V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 4A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 70W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 5V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 80nA
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.023 g
