TECH PUBLIC

TPESD4114-563

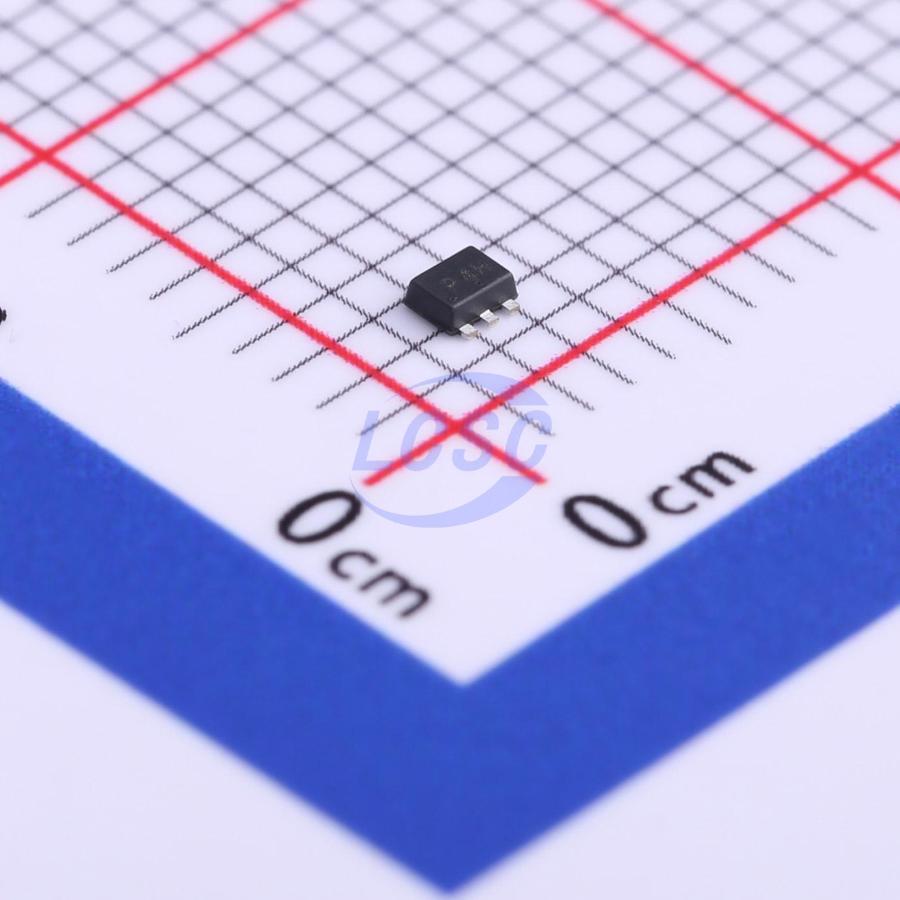

20VC Clamp 5A@8/20us Ipp SOT-563

SOT-563RoHSActive

5VWM 20VC SOT-563

Manufacturer: TECH PUBLIC
Manufacturer part #: TPESD4114-563
Store part #: C521959
Package / case: SOT-563
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,865 in stock

#C521959

Stock & price checked 11 days ago

Quantity	Unit price	Pack price
5+	₹30.01	₹150.05
50+	₹23.97	₹1,198.50
150+	₹21.39	₹3,208.50
500+	₹18.18	₹9,090.00
2,500+	₹14.79	₹36,975.00
4,000+	₹13.93	₹55,720.00

Quantity (min 5, multiples of 5)

5 × ₹30.01

₹150.05

excl. GST

₹177.06 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,000 per reel

TPESD4114-563

₹150.05 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 20V
Peak Pulse Current (Ipp): 5A@8/20us
Peak Pulse Power Dissipation (Ppp): 120W@8/20us
Number of Channels: Four channels
Voltage - Breakdown: 6V
type: TVS
Polarity: Unidirectional
Reverse Leakage Current (Ir): 500nA
Reverse Stand-Off Voltage (Vrwm): 5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.027 g

Overview

Applications

Cellular Handsets & Accessories
Digital Visual Interface (DVI)
Display Port
MDDI Ports
USB Ports
PCI Express
Serial ATA

Key features

Ultra low capacitance: 0.3pF typical (I/O to I/O)
Ultra low leakage: nA level
Low operating voltage: 5V
Low clamping voltage
Up to 4 data lines and one power line protects
Complies with following standards:
IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±25kV
IEC61000-4-4 (EFT) 40A (5/50ns)
IEC61000-4-5 (Lightning) 5A (8/20μs)
RoHS Compliant
