TECH PUBLIC

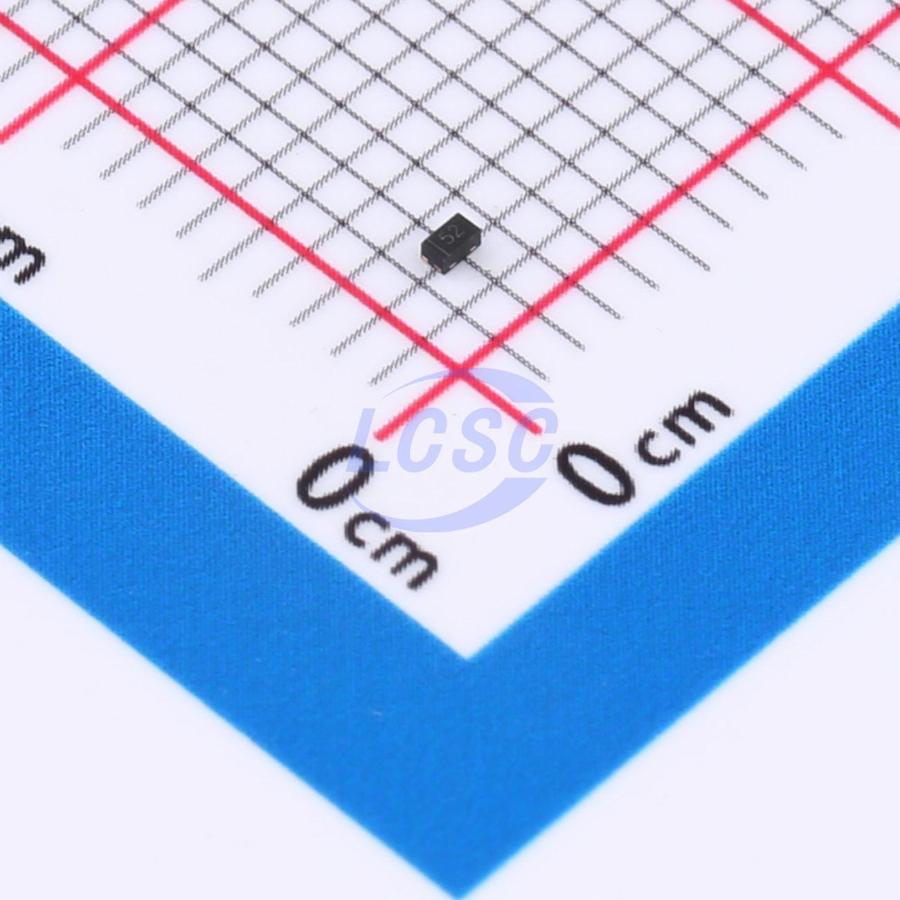

TPESD4V0X2UMZ

12VC 15VC Clamp 4A@8/20us Ipp ESD DIODE DFN1006-3

DFN1006-3RoHSActive

ESD DIODE 4VWM 12VC 15VC DFN1006-3

Manufacturer: TECH PUBLIC
Manufacturer part #: TPESD4V0X2UMZ
Store part #: C47117605
Package / case: DFN1006-3
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

780 in stock

#C47117605

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
20+	₹4.96	₹99.20
200+	₹3.93	₹786.00
600+	₹3.35	₹2,010.00
2,000+	₹3.00	₹6,000.00
10,000+	₹2.71	₹27,100.00
20,000+	₹2.54	₹50,800.00

Quantity (min 20, multiples of 20)

20 × ₹4.96

₹99.20

excl. GST

₹117.06 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 10,000 per reel

TPESD4V0X2UMZ

₹99.20 for 20 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 15V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 4A@8/20us
Peak Pulse Power Dissipation (Ppp): 80W@8/20us
Number of Channels: 2
Voltage - Breakdown: 5.3V
type: ESD
Polarity: Unidirectional
Reverse Leakage Current (Ir): 100nA
Reverse Stand-Off Voltage (Vrwm): 4V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 10,000 / Reel
Sold per: Piece
Minimum order: 20 (multiples of 20)
Unit weight: 0.007 g

Overview

Applications

Cellular Handsets & Accessories
Digital Visual Interface (DVI)
Display Port
MDDI Ports
USB Ports
PCI Express
Serial ATA

Key features

Ultra small package: 1.0×0.6×0.5mm
Ultra low capacitance: 0.3pF typical (1/O-1/0)
Ultra low leakage: nA level
Low operating voltage: 4V
Low clamping voltage
3-pin leadless package
Up to 2-line protects
Complies with following standards:
IEC 61000-4-2 (ESD) immunity test Air discharge: ±25kV Contact discharge: ±20kV
IEC61000-4-5 (Lightning) 4A (8/20μs)
IEC61000-4-4 (EFT) 40A (5/50ns)
RoHS Compliant
