TECH PUBLICDatasheet (PDF)

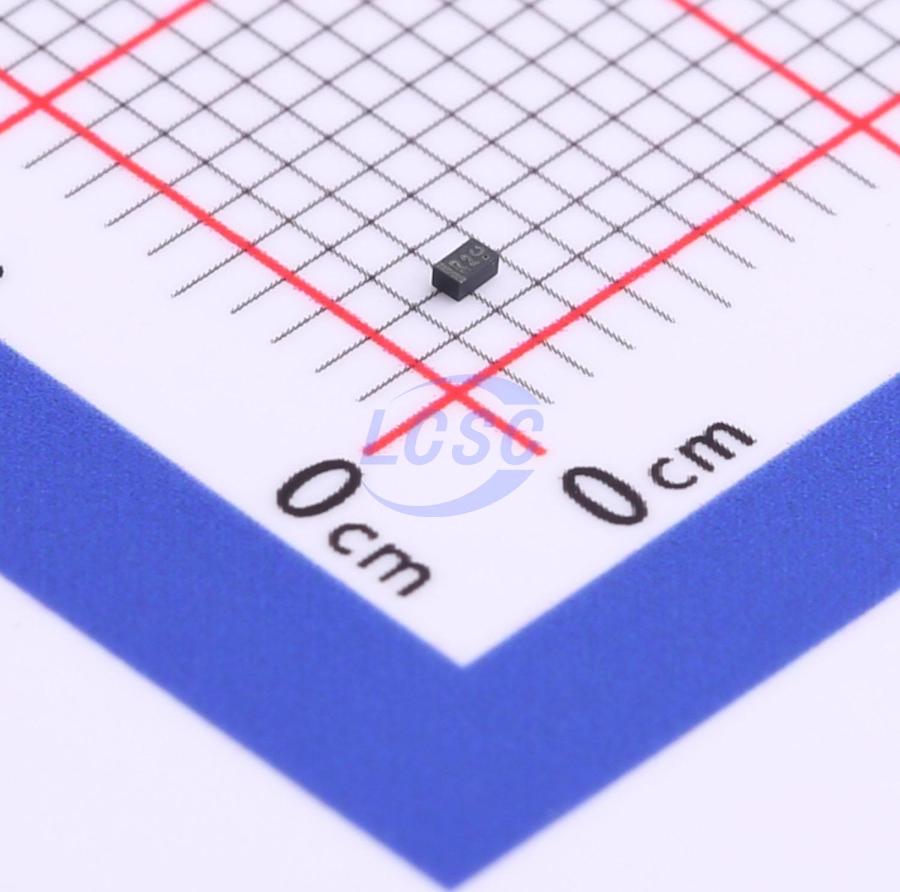

TPESD5411N
17VC Clamp 6A@8/20us Ipp ESD DIODE DFN1006-2(0402)
DFN1006-2(0402)RoHSActive
ESD DIODE 7VWM 17VC DFN1006-2(0402)
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPESD5411N
- Store part #
- C2827623
- Package / case
- DFN1006-2(0402)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,060 in stock
#C2827623
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.33 | ₹66.60 |
| 200+ | ₹2.63 | ₹526.00 |
| 600+ | ₹2.24 | ₹1,344.00 |
| 2,000+ | ₹2.00 | ₹4,000.00 |
| 10,000+ | ₹1.59 | ₹15,900.00 |
| 20,000+ | ₹1.48 | ₹29,600.00 |
20 × ₹3.33
₹66.60
excl. GST
₹78.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
TPESD5411N
₹66.60 for 20 + GST
Specifications
- Clamping Voltage
- 17V
- Peak Pulse Current (Ipp)
- 6A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 72W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 9.5V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 7V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.01 g
Overview
Applications
- Cellular Handsets and Accessories
- Personal Digital Assistants
- Notebooks and Handhelds
- Portable Instrumentation
- Digital Cameras
- Peripherals
Key features
- Ultra small package: 1.0x0 6x0 5mm
- Ultra low capacitance: 15 pF (MAX)
- Ultra low leakage: nA level
- Low operating voltage: ±7V
- Low clamping voltage
- 2-pin leadless package
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000 - 4 - 5 (Lightning) 6A (8/20μs)
- RoHS Compliant Lead Finish: NiPdAu
