TECH PUBLICDatasheet (PDF)

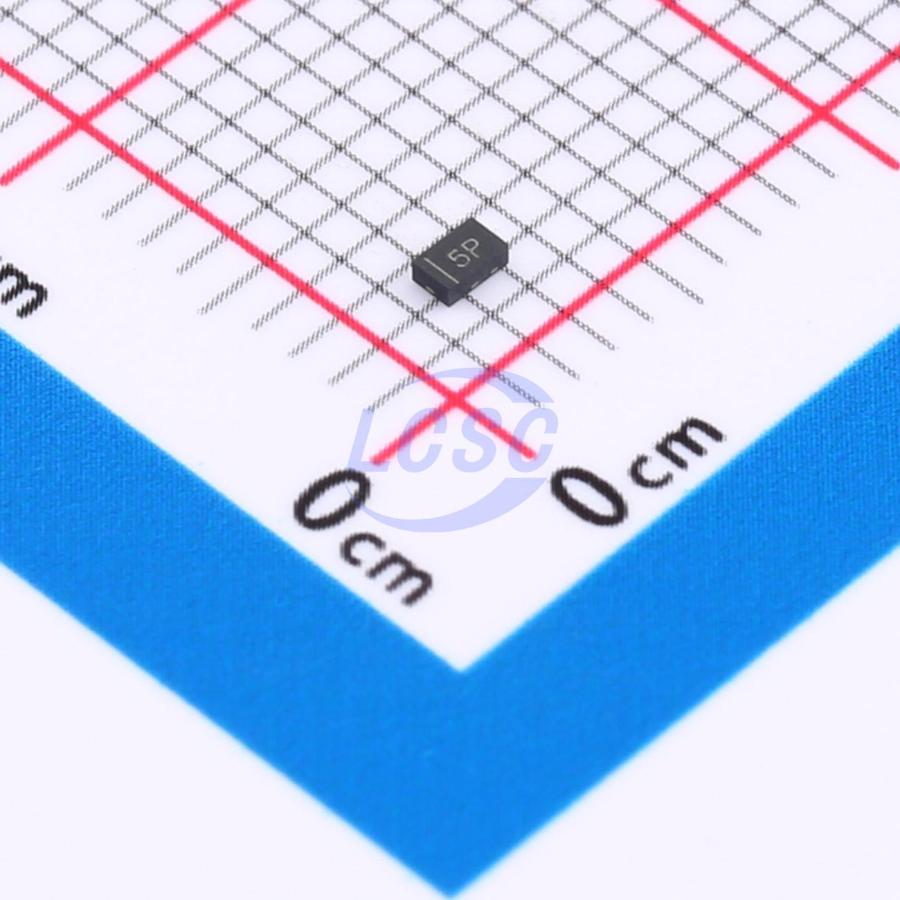

TPESD56101D05
14VC Clamp 100A@8/20us Ipp ESD DIODE DFN1610-2
DFN1610-2RoHSActive
ESD DIODE 5VWM 14VC DFN1610-2
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPESD56101D05
- Store part #
- C42436627
- Package / case
- DFN1610-2
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,860 in stock
#C42436627
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.61 | ₹86.10 |
| 100+ | ₹6.89 | ₹689.00 |
| 300+ | ₹6.03 | ₹1,809.00 |
| 3,000+ | ₹5.38 | ₹16,140.00 |
| 6,000+ | ₹4.87 | ₹29,220.00 |
| 9,000+ | ₹4.60 | ₹41,400.00 |
10 × ₹8.61
₹86.10
excl. GST
₹101.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPESD56101D05
₹86.10 for 10 + GST
Specifications
- Clamping Voltage
- 20V
- Peak Pulse Current (Ipp)
- 100A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 2kW@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 7.2V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.026 g
Overview
Applications
- Power Management
- Industrial Application
- Power Supply Protection
- Portable Instrumentation
- Peripherals
Key features
- Low operating voltage: 5V
- 2000W peak pulse power (8/20μs)
- Ultra low leakage: nA level
- Low clamping voltage
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-4 (EFT) 40A (5/50ns)
- IEC61000-4-5 (Lightning) 100A (8/20μs)
- 2-pin leadless package
- These are Pb-Free Devices
- Response Time is Typically < 1 ns
