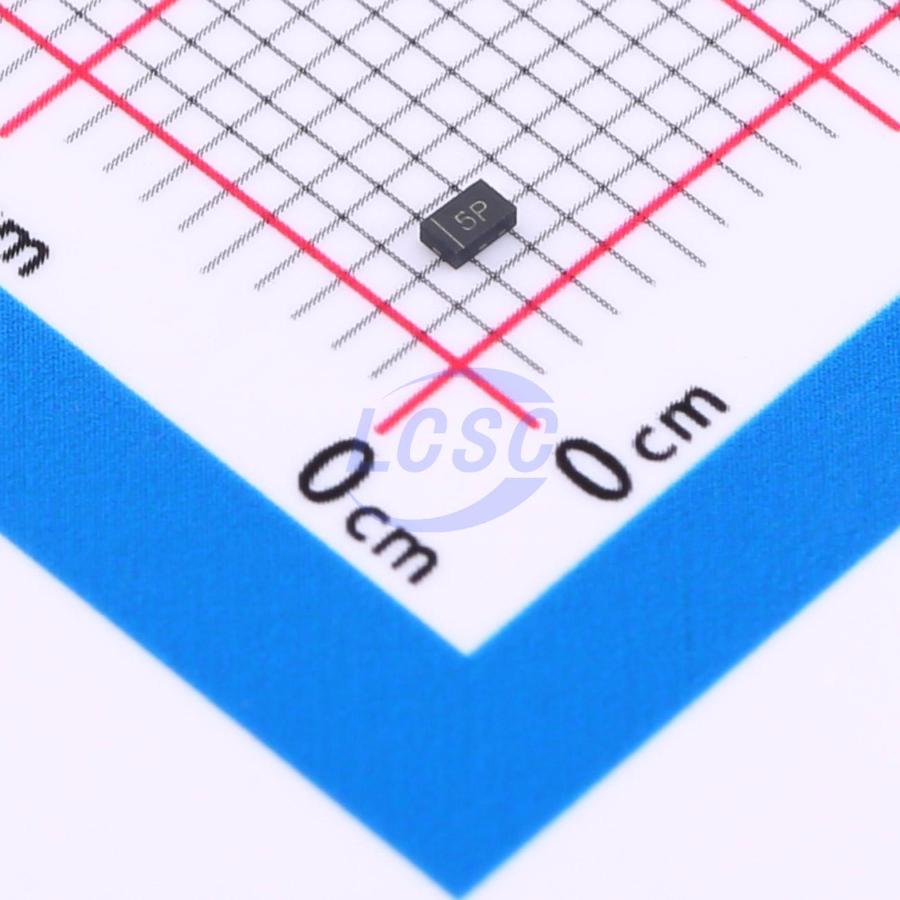

TECH PUBLIC

TPESD56201D05

14VC Clamp 100A@8/20us Ipp ESD DIODE DFN1610-2

DFN1610-2ROHS CompliantActive

ESD DIODE 5VWM 14VC DFN1610-2

Manufacturer: TECH PUBLIC
Manufacturer part #: TPESD56201D05
Store part #: C42436630
Package / case: DFN1610-2
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,560 in stock

#C42436630

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
10+	₹8.71	₹87.10
100+	₹6.97	₹697.00
300+	₹6.11	₹1,833.00
3,000+	₹5.24	₹15,720.00
6,000+	₹4.72	₹28,320.00
9,000+	₹4.46	₹40,140.00

Quantity (min 10, multiples of 10)

10 × ₹8.71

₹87.10

excl. GST

₹102.78 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPESD56201D05

₹87.10 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 20V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 100A@8/20us
Peak Pulse Power Dissipation (Ppp): 2kW@8/20us
Number of Channels: 1
Voltage - Breakdown: 8V
type: ESD
Polarity: Unidirectional
Reverse Leakage Current (Ir): 1uA
Reverse Stand-Off Voltage (Vrwm): 5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.026 g

Overview

Applications

Power Management
Industrial Application
Power Supply Protection
Portable Instrumentation
Peripherals

Key features

Low operating voltage: 5V
2000W peak pulse power (8/20μs)
Ultra low leakage: nA level
Low clamping voltage
IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
IEC61000-4-4 (EFT) 40A (5/50ns)
IEC61000-4-5 (Lightning) 100A (8/20μs)
2-pin leadless package
These are Pb-Free Devices
Response Time is Typically < 1 ns
