TECH PUBLICDatasheet (PDF)

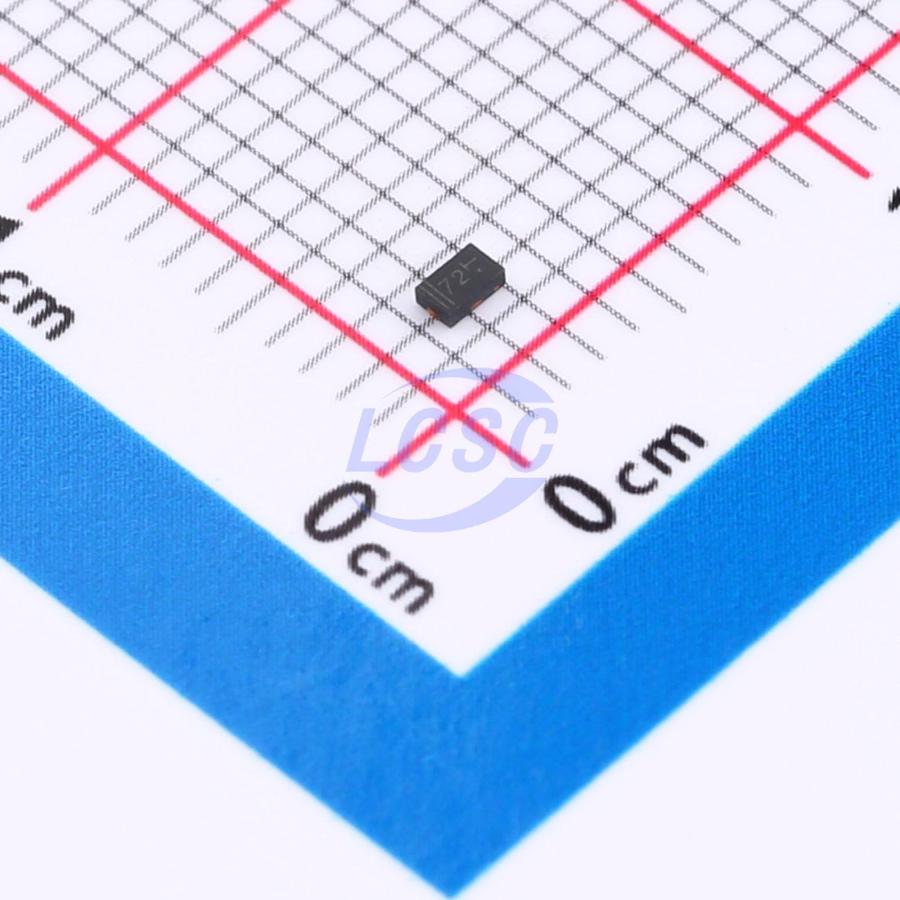

TPESD56201D10
25VC Clamp 76A@8/20us Ipp ESD DIODE DFN1610-2
DFN1610-2RoHSActive
ESD DIODE 10VWM 25VC DFN1610-2
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPESD56201D10
- Store part #
- C42436631
- Package / case
- DFN1610-2
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,985 in stock
#C42436631
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.34 | ₹71.70 |
| 50+ | ₹11.47 | ₹573.50 |
| 150+ | ₹10.03 | ₹1,504.50 |
| 500+ | ₹8.96 | ₹4,480.00 |
| 3,000+ | ₹8.10 | ₹24,300.00 |
| 6,000+ | ₹7.67 | ₹46,020.00 |
5 × ₹14.34
₹71.70
excl. GST
₹84.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPESD56201D10
₹71.70 for 5 + GST
Specifications
- Clamping Voltage
- 25V
- Peak Pulse Current (Ipp)
- 76A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 1.8kW@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 14.6V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 10V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.02 g
Overview
Applications
- Power Management
- Industrial Application
- Power Supply Protection
- Many other portable devices
Key features
- 1800W peak pulse power (8/20μs)
- Low leakage: nA level
- Low operating voltage: 10V
- Ultra low clamping voltage
- One power line protects
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-5 (Lightning) 76A (8/20μs)
- RoHS Compliant
