TECH PUBLIC

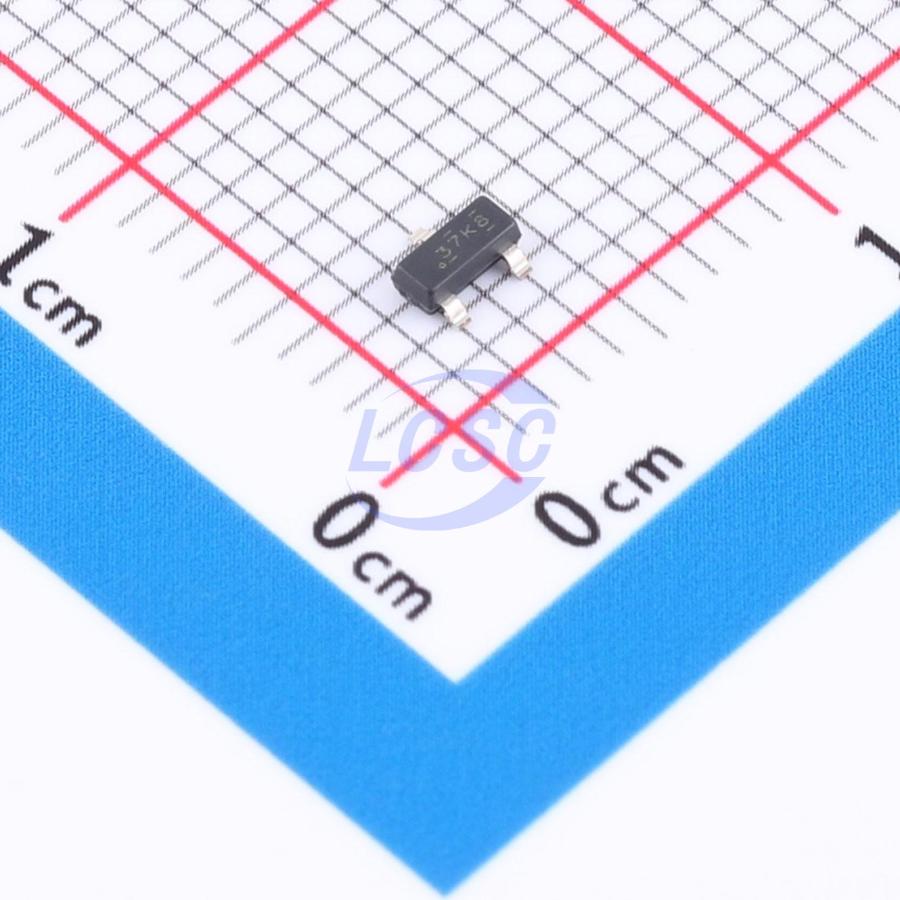

TPESD652DBZR

38V 5.5A@8/20us 180W@8/20us 25V Bidirectional 18V SOT-23 TVS Diodes

SOT-23RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: TPESD652DBZR
Store part #: C53340940
Package / case: SOT-23
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,050 in stock

#C53340940

Stock & price checked 12 days ago

Quantity	Unit price	Pack price
5+	₹16.07	₹80.35
50+	₹12.65	₹632.50
150+	₹10.93	₹1,639.50
500+	₹9.63	₹4,815.00
3,000+	₹8.61	₹25,830.00
6,000+	₹8.10	₹48,600.00

Quantity (min 5, multiples of 5)

5 × ₹16.07

₹80.35

excl. GST

₹94.81 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPESD652DBZR

₹80.35 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 38V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 5.5A@8/20us
Peak Pulse Power Dissipation (Ppp): 180W@8/20us
Voltage - Breakdown: 25V
Number of Channels: 2
type: ESD
Reverse Leakage Current (Ir): 200nA
Polarity: Bidirectional
Reverse Stand-Off Voltage (Vrwm): 18V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.035 g

Overview

Applications

Mobile phones & accessories
Personal digital assistants
Laptops & handheld devices
Portable instruments
USB power & data cables

Key features

Low operating voltage: 18V
Ultra-low capacitance: 1pF maximum
Ultra-low leakage: nanoamp level
Low clamping voltage
IEC 61000-4-2 (ESD) immunity test: air discharge ±30kV, contact discharge ±30kV
IEC 61000-4-4 (EFT) 40A (5/50ns)
IEC 61000-4-5 (surge) 5.5A (8/20μs)
3-pin lead-free package
RoHS-compliant lead-free devices
Response time typically less than 1ns
