TECH PUBLICDatasheet (PDF)

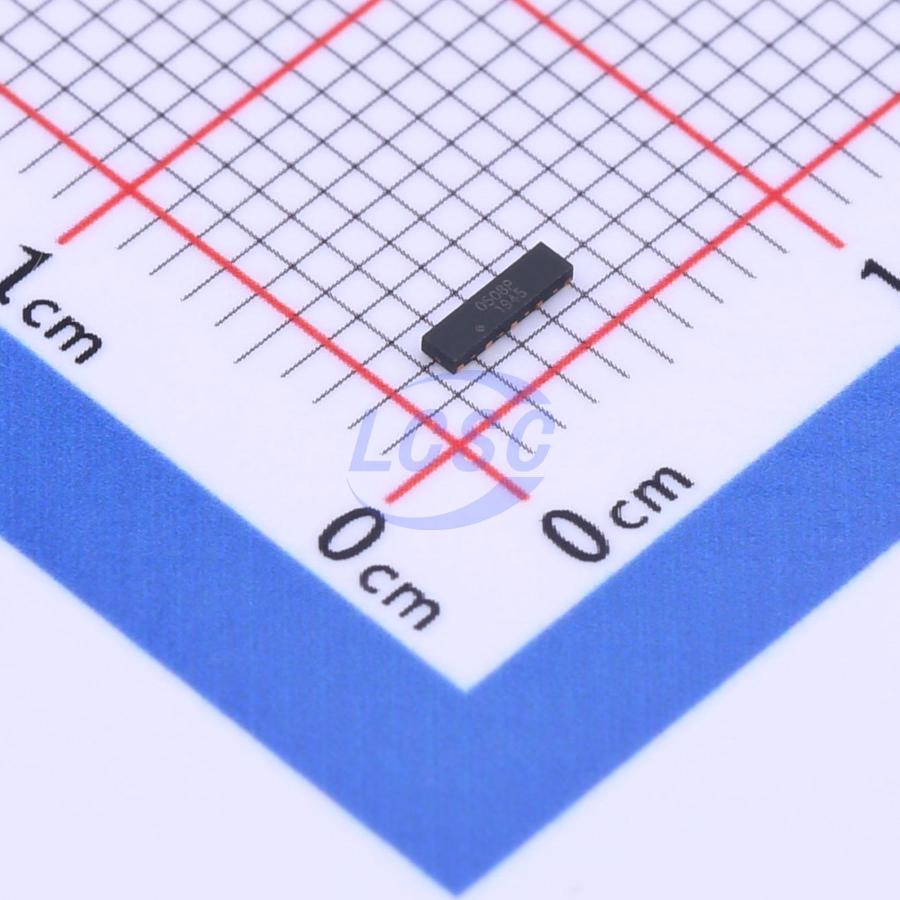

TPESD7538P
18VC Clamp 5A@8/20us Ipp DFN3810-9
DFN3810-9RoHSActive
5VWM 18VC DFN3810-9
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPESD7538P
- Store part #
- C970014
- Package / case
- DFN3810-9
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,289 in stock
#C970014
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹68.02 | ₹68.02 |
| 10+ | ₹52.59 | ₹525.90 |
| 30+ | ₹45.86 | ₹1,375.80 |
| 100+ | ₹37.60 | ₹3,760.00 |
| 500+ | ₹33.47 | ₹16,735.00 |
| 1,000+ | ₹31.29 | ₹31,290.00 |
1 × ₹68.02
₹68.02
excl. GST
₹80.26 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPESD7538P
₹68.02 for 1 + GST
Specifications
- Clamping Voltage
- 18V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 100W@8/20us
- Number of Channels
- 8
- Voltage - Breakdown
- 7.6V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 500nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.033 g
Overview
Applications
- USB 3.0, 3.1 and type C
- HDMI 1.4 High-Speed Data Lines
Key features
- Ultra low capacitance: 0.29pF typical (IO to 10)
- Ultralow leakage: nA level
- Low operating voltage: 5V
- Low clamping voltage
- Protects eight data lines
- Leadless flow-through package
- Complies with following standards:
- IEC61000-4-2(ESD) immunity test Air discharge: ±25kV Contact discharge: ±20kV
- IEC61000-4-5 (Lightning) 5A (8/20μs)
- IEC61000-4-4 (EFT) 40A (5/50ns)
