TECH PUBLICDatasheet (PDF)

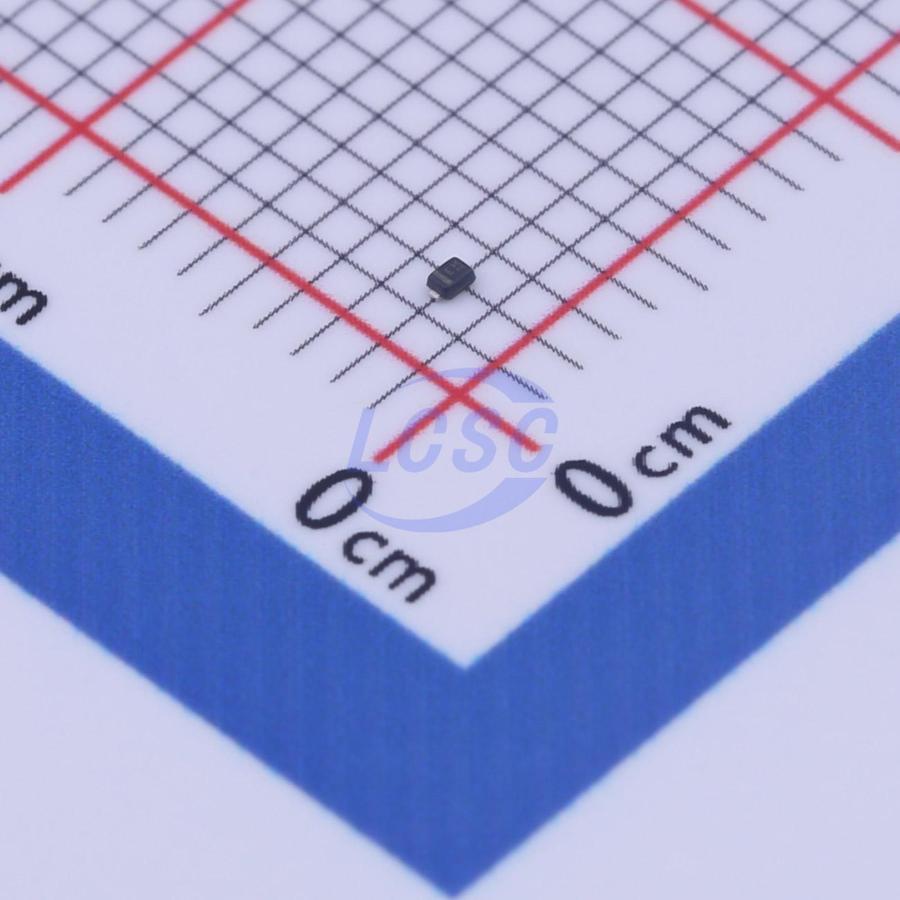

TPESD9X3.3ST5G
11VC Clamp 10A@8/20us Ipp SOD-923(0402)
SOD-923(0402)RoHSActive
3.3VWM 11VC SOD-923(0402)
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPESD9X3.3ST5G
- Store part #
- C2682288
- Package / case
- SOD-923(0402)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,300 in stock
#C2682288
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.02 | ₹60.20 |
| 100+ | ₹4.83 | ₹483.00 |
| 300+ | ₹4.23 | ₹1,269.00 |
| 1,000+ | ₹3.80 | ₹3,800.00 |
| 5,000+ | ₹3.44 | ₹17,200.00 |
| 8,000+ | ₹2.78 | ₹22,240.00 |
10 × ₹6.02
₹60.20
excl. GST
₹71.04 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 8,000 per reel
TPESD9X3.3ST5G
₹60.20 for 10 + GST
Specifications
- Clamping Voltage
- 11V
- Peak Pulse Current (Ipp)
- 10A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 100W@8/20us
- Voltage - Breakdown
- 5V
- Number of Channels
- 1
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 8,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.006 g
Overview
Applications
- Mobile Phones and Accessories
- Battery Protection
- USB VBus
- Power Line Protection
- Hand Held Portable Applications
Key features
- 100W peak pulse power (8/20μs )
- Protects one data or power line
- Operating voltage: 3.3V
- Ultra low clamping voltage
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-5 (SURGE) 10A (8/20us)
