TECH PUBLIC

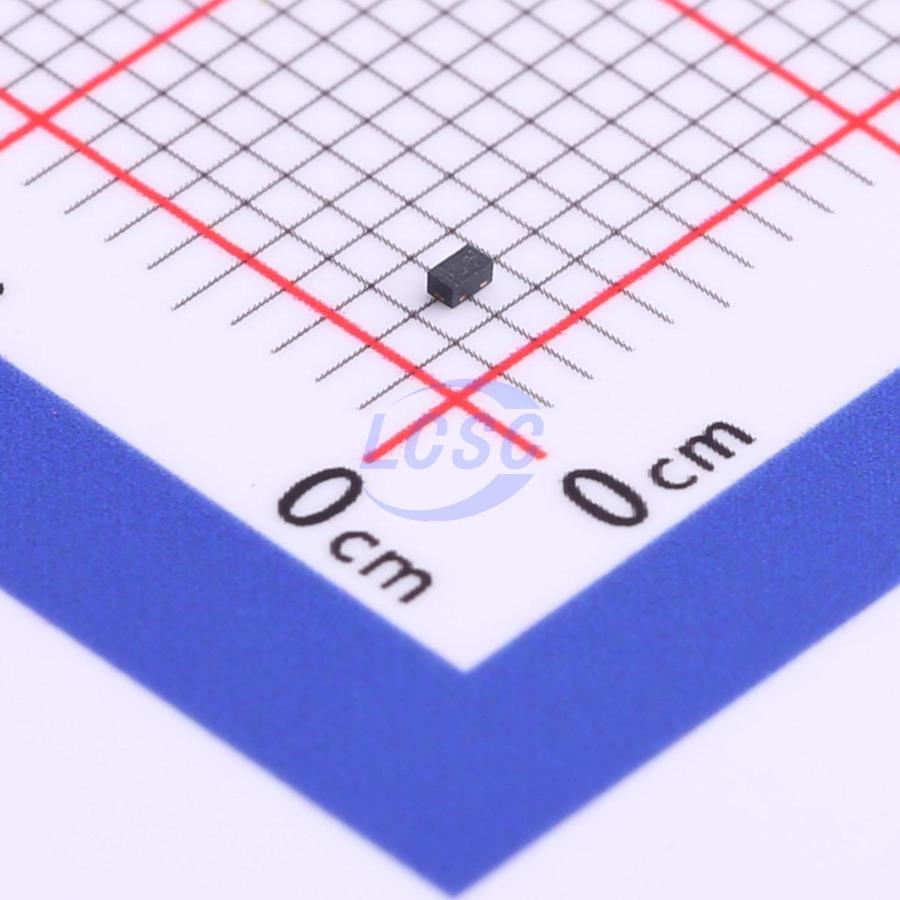

TPESD9X5VU

14VC Clamp 4A@8/20us Ipp ESD DIODE X2-DFN1006-2

X2-DFN1006-2RoHSActive

ESD DIODE 5VWM 14VC X2-DFN1006-2

Manufacturer: TECH PUBLIC
Manufacturer part #: TPESD9X5VU
Store part #: C2827558
Package / case: X2-DFN1006-2
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

840 in stock

#C2827558

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
20+	₹2.66	₹53.20
200+	₹2.33	₹466.00
600+	₹2.14	₹1,284.00
2,000+	₹2.02	₹4,040.00
10,000+	₹1.69	₹16,900.00
20,000+	₹1.64	₹32,800.00

Quantity (min 20, multiples of 20)

20 × ₹2.66

₹53.20

excl. GST

₹62.78 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 10,000 per reel

TPESD9X5VU

₹53.20 for 20 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 14V
Peak Pulse Current (Ipp): 4A@8/20us
Peak Pulse Power Dissipation (Ppp): 70W@8/20us
Number of Channels: 1
Voltage - Breakdown: 9V
type: TVS
Polarity: Unidirectional
Reverse Leakage Current (Ir): 80nA
Reverse Stand-Off Voltage (Vrwm): 5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 10,000 / Reel
Sold per: Piece
Minimum order: 20 (multiples of 20)
Unit weight: 0.011 g

Overview

Applications

Cellular Handsets and Accessories
Personal Digital Assistants
Notebooks and Handhelds
Portable Instrumentation
Digital Cameras
Peripherals
Audio Players
Keypads, Side Keys, LCD Displays

Key features

Ultra small package: 1.0x0.6x0.5mm
Ultra low capacitance: 0.5pF typical
Ultra low leakage: nA level
Low operating voltage: 5V
Low clamping voltage
2-pin leadless package
Complies with following standards:
IEC 61000-4-2 (ESD) immunity test Air discharge: ±20kV Contact discharge: ±20kV
IEC61000-4-5 (Lightning) 4A (8/20μs)
RoHS Compliant Lead Finish: NiPdAu
