TECH PUBLICDatasheet (PDF)

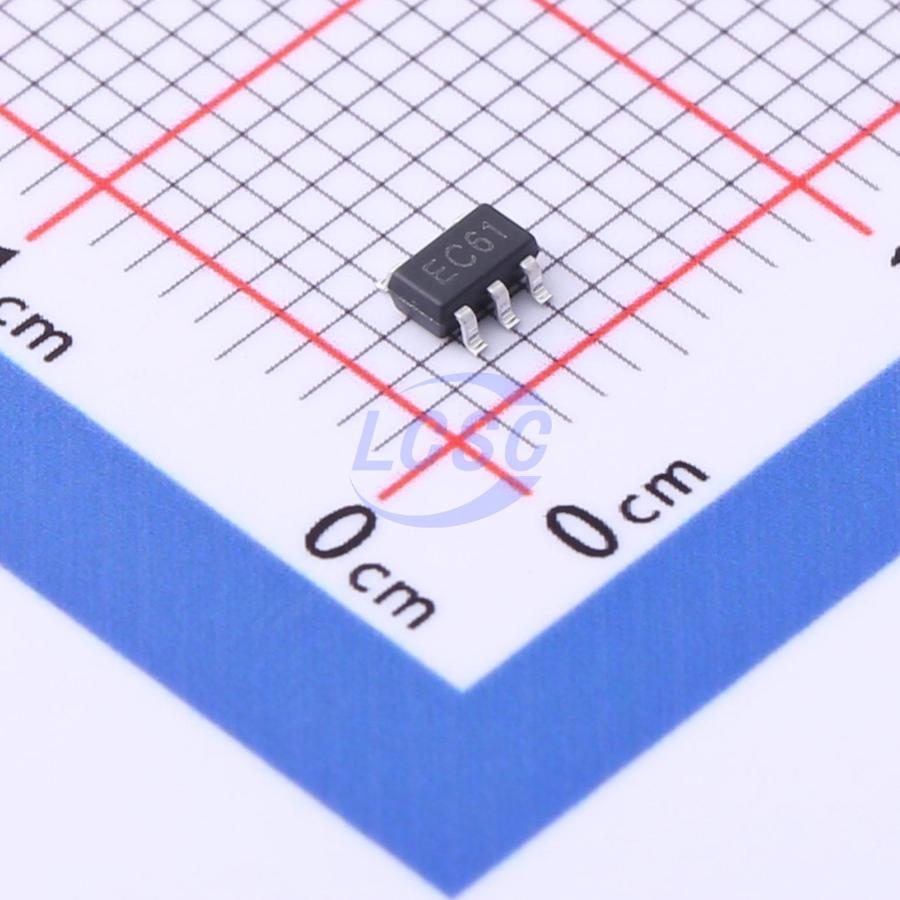

TPESDA6V1SC5
15VC Clamp 12A@8/20us Ipp ESD DIODE SOT-23-5
SOT-23-5RoHSActive
ESD DIODE 5VWM 15VC SOT-23-5
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPESDA6V1SC5
- Store part #
- C2844734
- Package / case
- SOT-23-5
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,020 in stock
#C2844734
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.72 | ₹78.60 |
| 50+ | ₹12.58 | ₹629.00 |
| 150+ | ₹11.02 | ₹1,653.00 |
| 500+ | ₹9.84 | ₹4,920.00 |
| 3,000+ | ₹7.83 | ₹23,490.00 |
| 6,000+ | ₹7.37 | ₹44,220.00 |
5 × ₹15.72
₹78.60
excl. GST
₹92.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPESDA6V1SC5
₹78.60 for 5 + GST
Specifications
- Clamping Voltage
- 15V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 12A@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 8.4V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 80nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.035 g
Overview
Applications
- Cell phone Handsets and Accessories
- Microprocessor Based Equipment
- Personal Digital Assistants (PDA's)
- Notebooks, Desktops, and Servers
- Portable Instrumentation
- Set Top Box
Key features
- Ultra low leakage: nA level
- Low operating voltage: 5V
- Low clamping voltage
- 2-pin leadless package
- Complies with following standards: IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-5 (Lightning) 12A (8/20μs)
- IEC61000-4-4 (EFT) 40A (5/50ns)
- RoHS Compliant
- Lead Finish: NiPdAu
