TECH PUBLICDatasheet (PDF)

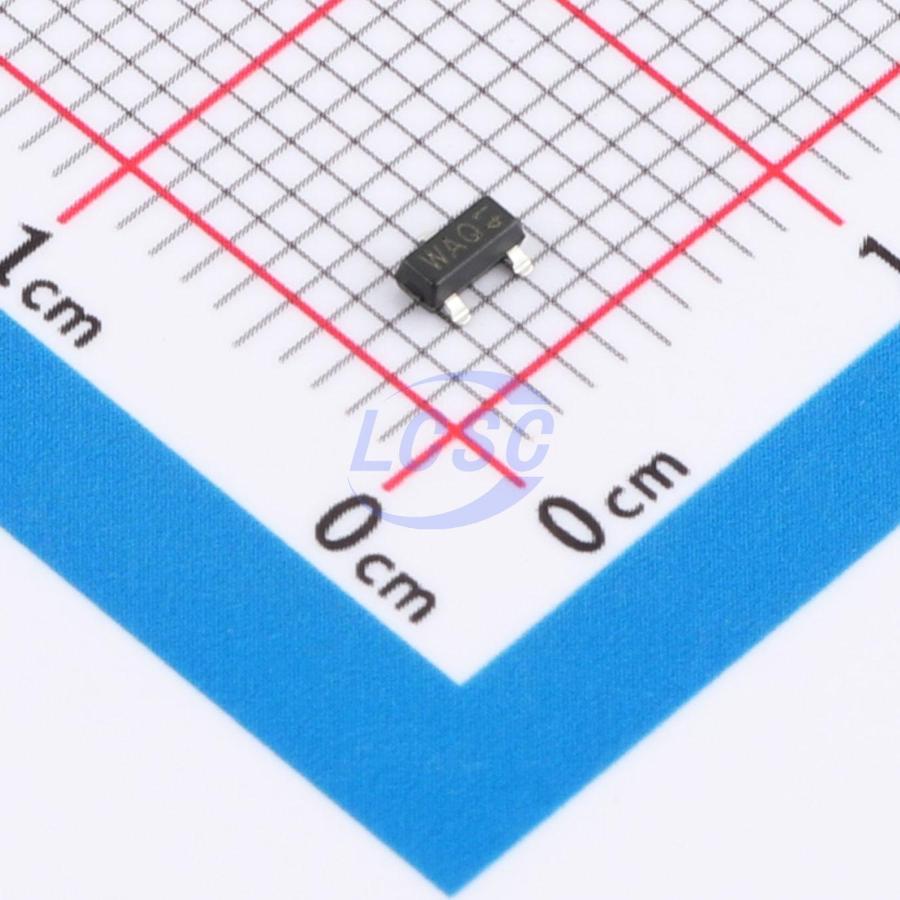

TPESDALD05UE2X
23V 4A@8/20us 100W@8/20us 6V Unidirectional 5V SOT-23 TVS Diodes
SOT-23RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPESDALD05UE2X
- Store part #
- C52098187
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,630 in stock
#C52098187
Stock & price checked 16 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.85 | ₹58.50 |
| 100+ | ₹4.59 | ₹459.00 |
| 300+ | ₹3.97 | ₹1,191.00 |
| 3,000+ | ₹3.51 | ₹10,530.00 |
| 6,000+ | ₹3.14 | ₹18,840.00 |
| 9,000+ | ₹2.95 | ₹26,550.00 |
10 × ₹5.85
₹58.50
excl. GST
₹69.03 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPESDALD05UE2X
₹58.50 for 10 + GST
Specifications
- Clamping Voltage
- 23V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 4A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 100W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 6V
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 80nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
Applications
- USB 2.0 and USB 3.0
- SATA and eSATA
- DVI
- Set-top boxes
- Portable electronic devices
Key features
- Ultra-low capacitance: 0.35pF typical
- Ultra-low leakage: nanoampere level
- Low operating voltage: 5V
- Low clamping voltage
- 2-pin leadless package
- Compliant with the following standards:
- IEC 61000-4-2 (ESD) immunity test
- Air discharge: ±20kV
- Contact discharge: ±15kV
- IEC 61000-4-5 (Lightning Surge) 4A (8/20μs)
- RoHS compliant
- Lead finish: NiPdAu
