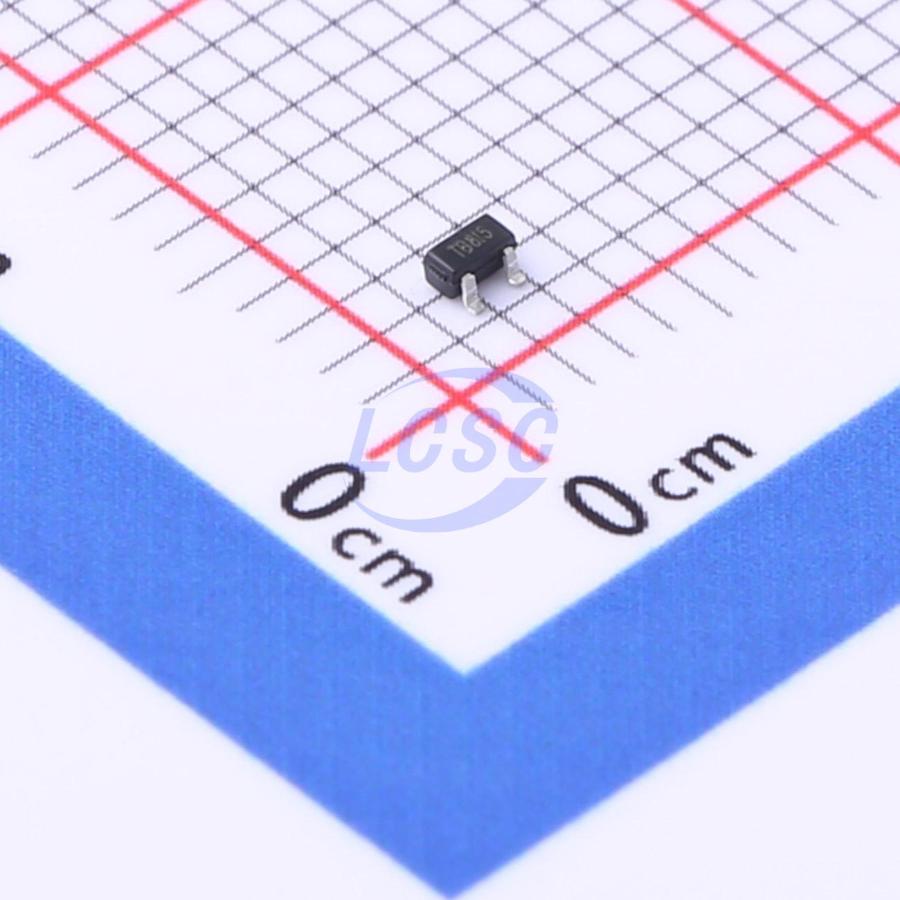

TECH PUBLIC

TPESDBL5V0E2

10VC Clamp 6A@8/20us Ipp ESD DIODE SOT-523

SOT-523RoHSActive

ESD DIODE 5VWM 10VC SOT-523

Manufacturer: TECH PUBLIC
Manufacturer part #: TPESDBL5V0E2
Store part #: C2875150
Package / case: SOT-523
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,000 in stock

#C2875150

Stock & price checked 12 days ago

Quantity	Unit price	Pack price
10+	₹8.04	₹80.40
100+	₹6.56	₹656.00
300+	₹5.81	₹1,743.00
3,000+	₹4.54	₹13,620.00
6,000+	₹4.09	₹24,540.00
9,000+	₹3.86	₹34,740.00

Quantity (min 10, multiples of 10)

10 × ₹8.04

₹80.40

excl. GST

₹94.87 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPESDBL5V0E2

₹80.40 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 10V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 6A@8/20us
Peak Pulse Power Dissipation (Ppp): 60W@8/20us
Number of Channels: 2
Voltage - Breakdown: 6.5V
type: TVS
Polarity: Bidirectional
Reverse Leakage Current (Ir): 80nA
Reverse Stand-Off Voltage (Vrwm): 5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.024 g

Overview

Applications

HDMI interface protection
Mobile display digital interface
RF/Antenna circuits
USB 2.0 & Firewire ports
GaAs photodetector protection
HBT power Amp protection
Infiniband transceiver protection

Key features

Low operating voltage: ±5V
Ultra low capacitance: 7pF typical
Ultra low leakage: nA level
Low clamping voltage
Complies with following standards:
IEC61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
IEC61000-4-5 (Lightning) 6A (8/20μs)
RoHS Compliant
Lead Finish: NiPdAu
