TECH PUBLICDatasheet (PDF)

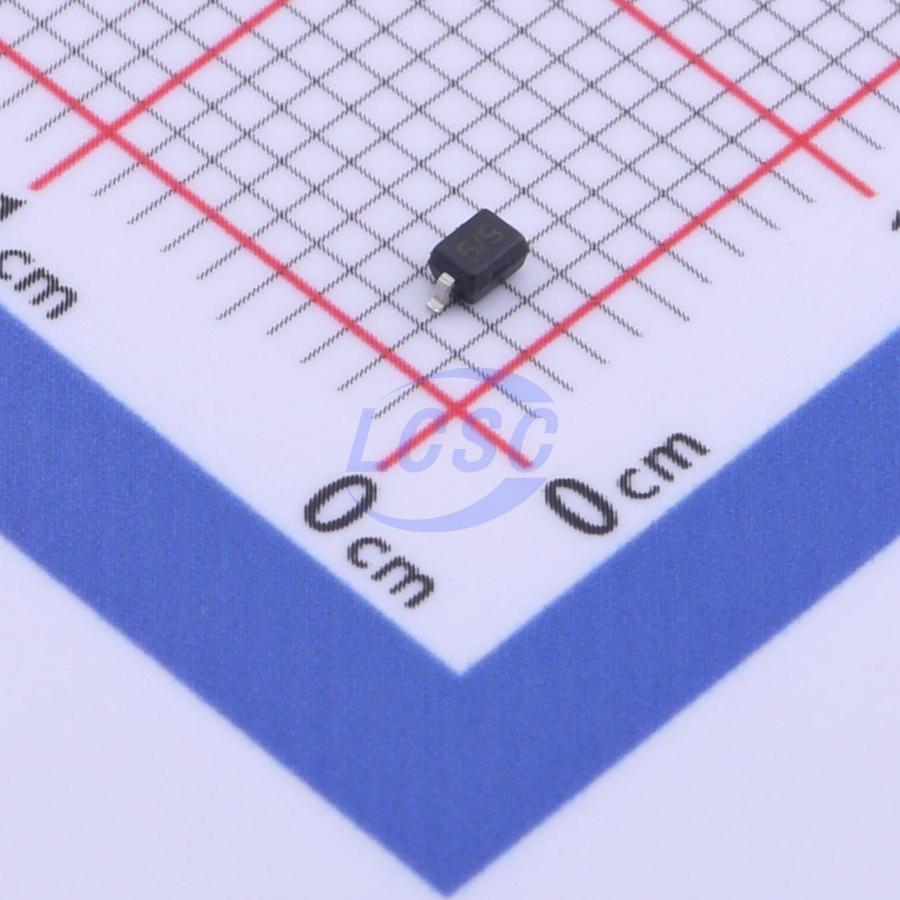

TPESDBLC5V0D3
15VC Clamp 5A@8/20us Ipp SOD-323
SOD-323RoHSActive
5VWM 15VC SOD-323
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPESDBLC5V0D3
- Store part #
- C2682280
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
680 in stock
#C2682280
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.64 | ₹72.80 |
| 200+ | ₹2.87 | ₹574.00 |
| 600+ | ₹2.43 | ₹1,458.00 |
| 3,000+ | ₹1.96 | ₹5,880.00 |
| 9,000+ | ₹1.73 | ₹15,570.00 |
| 21,000+ | ₹1.61 | ₹33,810.00 |
20 × ₹3.64
₹72.80
excl. GST
₹85.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPESDBLC5V0D3
₹72.80 for 20 + GST
Specifications
- Clamping Voltage
- 15V
- Operating Temperature
- -55℃~+155℃
- Peak Pulse Current (Ipp)
- 5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 80W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 5.6V
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.053 g
Overview
Applications
- Cellular phones
- Portable devices
- Digital cameras
- Power supplies
Key features
- 80W peak pulse power per line (tp = 8/20μs)
- Replacement for MLV(0402)
- Bidirectional configurations
- Response time is typically < 1ns
- Low clamping voltage
- RoHS compliant
- Transient protection for data lines to IEC61000-4-2(ESD) ±25KV(air), ±25KV(contact); IEC61000-4-4(EFT) 40A(5/50ns)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPPESD5V0V1BA#C2682283TECH PUBLIC · SOD-323 | TECH PUBLIC | SOD-323 | 2,680 | ₹4.07 · 2,680 in stock | View |
