TECH PUBLICDatasheet (PDF)
TPET36CUS3

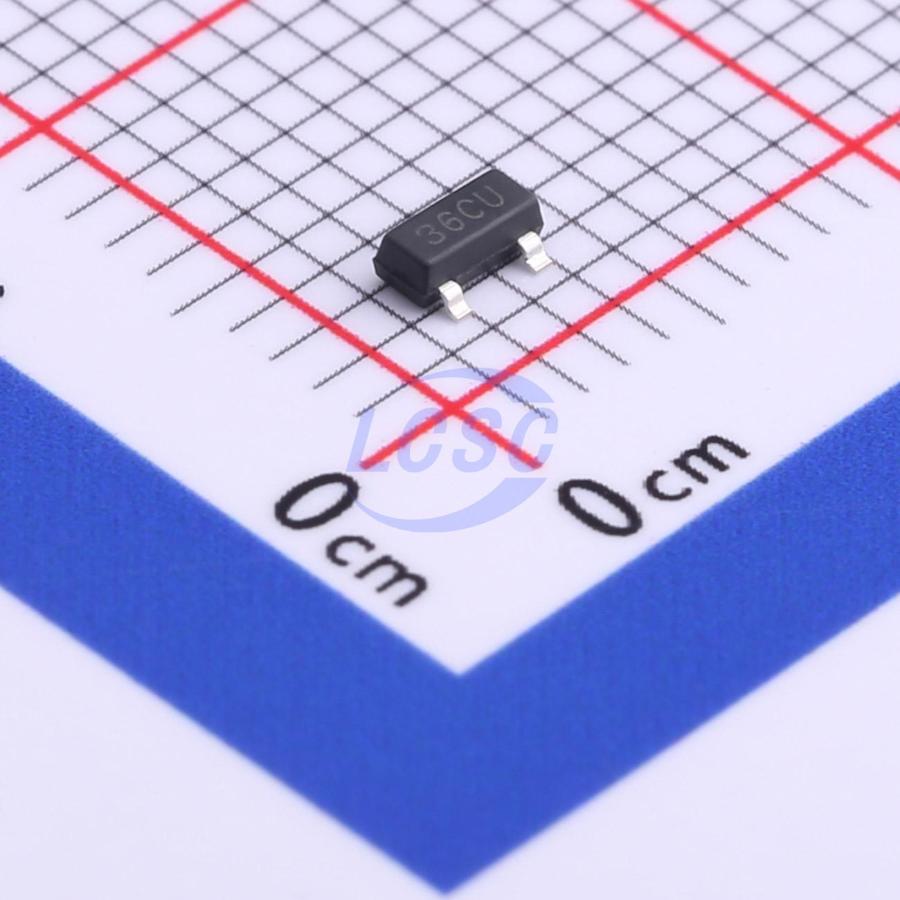

65V 200W@8/20us 42V Unidirectional 36V SOT-23-3 TVS Diodes
SOT-23-3RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPET36CUS3
- Store part #
- C708972
- Package / case
- SOT-23-3
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,935 in stock
#C708972
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.66 | ₹63.30 |
| 50+ | ₹10.05 | ₹502.50 |
| 150+ | ₹8.76 | ₹1,314.00 |
| 500+ | ₹7.78 | ₹3,890.00 |
| 3,000+ | ₹7.00 | ₹21,000.00 |
| 6,000+ | ₹6.60 | ₹39,600.00 |
5 × ₹12.66
₹63.30
excl. GST
₹74.69 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPET36CUS3
₹63.30 for 5 + GST
Specifications
- Clamping Voltage
- 65V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Power Dissipation (Ppp)
- 200W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 42V
- type
- ESD
- Reverse Leakage Current (Ir)
- 200nA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
Applications
- USB Power & Data Line Protection
- Monitors and Flat Panel Displays
- I²C Bus Protection
- Portable Instrumentation
- Set Top Box
Key features
- 200 Watts peak pulse power (tp = 8/20μs)
- Transient protection for high speed data lines to IEC 61000 - 4 - 2 (ESD) ± 30kV (air), ± 30kV (contact) IEC 61000 - 4 - 4 (EFT) 40A (5/50ns)
- Working voltages: 36V
