TECH PUBLICDatasheet (PDF)

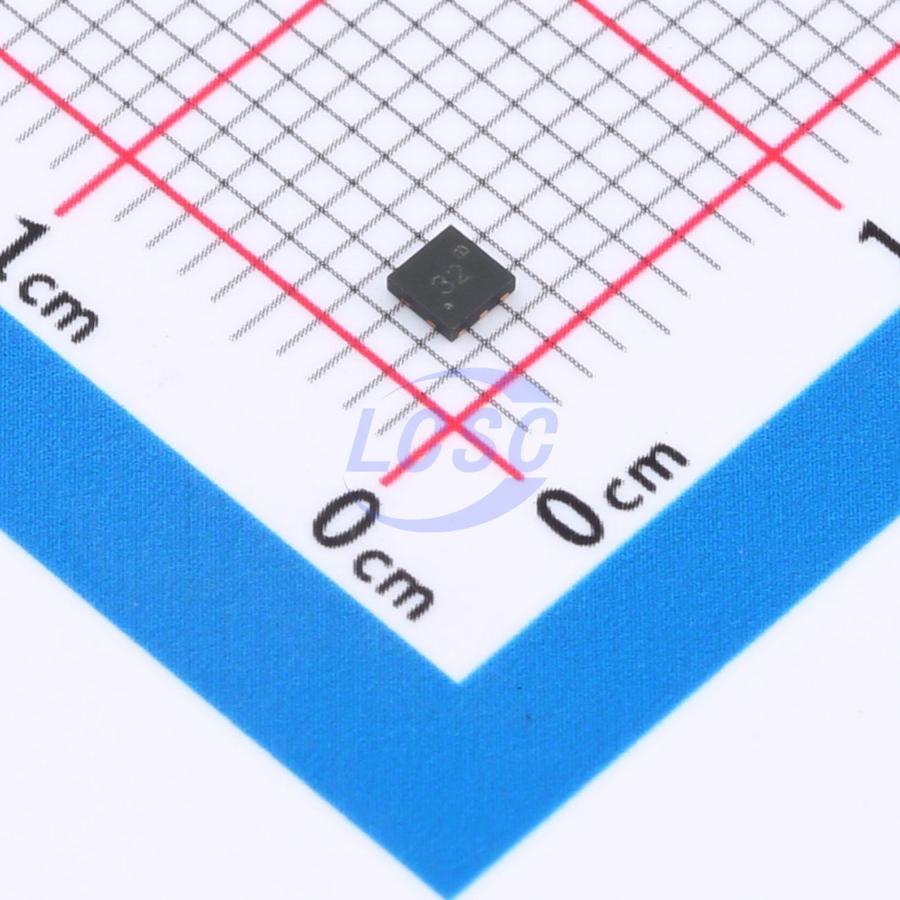

TPFDMA507P
P-Channel 20V 8A 2.6W Surface Mount DFN2X2-6L
DFN2X2-6LRoHSActive
MOSFET P-CH 20V 8A DFN2X2-6L
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPFDMA507P
- Store part #
- C48639038
- Package / case
- DFN2X2-6L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
930 in stock
#C48639038
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.93 | ₹59.65 |
| 50+ | ₹9.63 | ₹481.50 |
| 150+ | ₹8.48 | ₹1,272.00 |
| 500+ | ₹6.99 | ₹3,495.00 |
| 2,500+ | ₹6.30 | ₹15,750.00 |
| 4,000+ | ₹5.94 | ₹23,760.00 |
5 × ₹11.93
₹59.65
excl. GST
₹70.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TPFDMA507P
₹59.65 for 5 + GST
Specifications
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 8A
- Pd - Power Dissipation
- 2.6W
- RDS(on)
- 24.5mΩ@4.5V;31mΩ@2.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 12.8nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 700mV
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.056 g
Overview
This P-channel MOSFET employs advanced trench technology and design to achieve excellent on-resistance (RDS(on)) with low gate charge. It is suitable for a wide range of applications.
Applications
- PWM applications
- Load switching
- Mobile phone battery charging
Key features
- VDS = -20V, ID = -8A
- RDS(ON) = 24.5 mΩ (typ) at VGS = -4.5V
- RDS(ON) = 31 mΩ (typ) at VGS = -2.5V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPFDMA507P-1#C48639039TECH PUBLIC · DFN2X2-6L | TECH PUBLIC | DFN2X2-6L | 3,990 | ₹60.62 · 3,990 in stock | View |
 | TPCSD25310Q2#C48639043TECH PUBLIC · DFN2X2-6L | TECH PUBLIC | DFN2X2-6L | 5,187 | ₹54.72 · 5,187 in stock | View |
 | TPM20V8PD6-1#C48639047TECH PUBLIC · DFN2X2-6L | TECH PUBLIC | DFN2X2-6L | 950 | ₹13.97 · 950 in stock | View |
 | TPMPB29XPE#C48639041TECH PUBLIC · DFN2X2-6L | TECH PUBLIC | DFN2X2-6L | 850 | ₹11.51 · 850 in stock | View |
 | TPWPM1481#C48639042TECH PUBLIC · DFN-6L(2x2) | TECH PUBLIC | DFN-6L(2x2) | 520 | ₹10.35 · 520 in stock | View |
