TECH PUBLIC

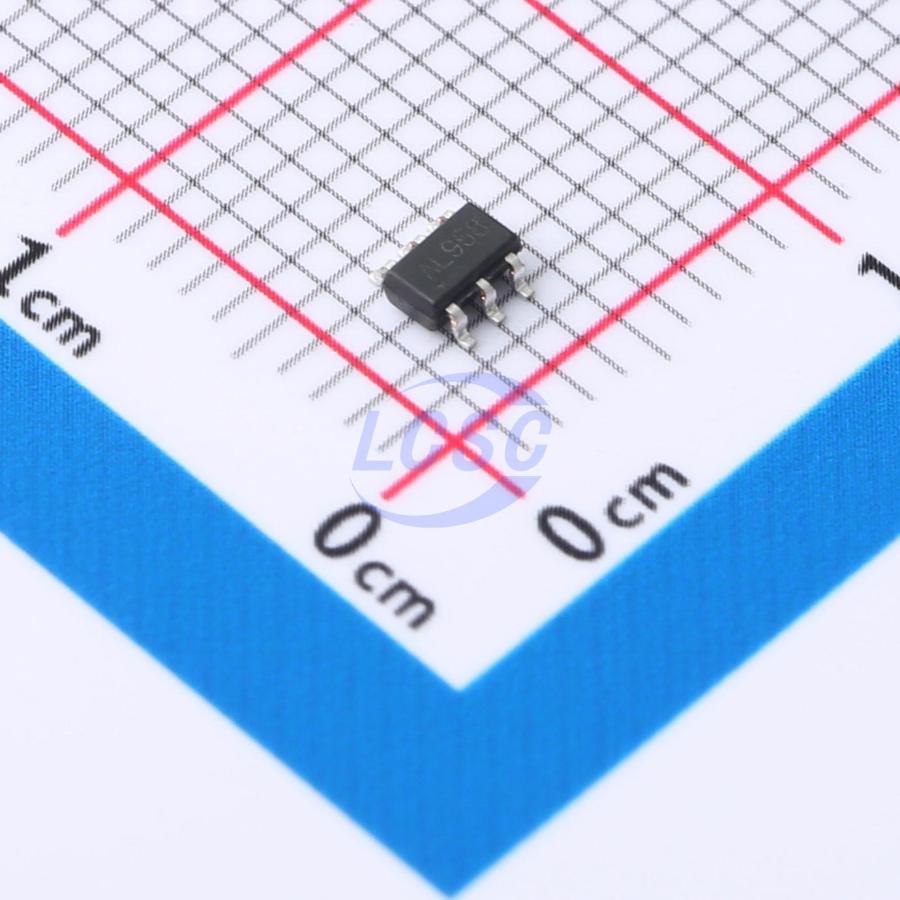

TPFP6291LR-G1

Boost Switching Regulator IC Adjustable 1 Output 2A SOT-23-6

SOT-23-6RoHSActive

TPFP6291LR-G1: 2A High Efficiency Boost DC/DC Regulator

Manufacturer: TECH PUBLIC
Manufacturer part #: TPFP6291LR-G1
Store part #: C18197827
Package / case: SOT-23-6
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10,535 in stock

#C18197827

Stock & price checked 22 h ago

Quantity	Unit price	Pack price
5+	₹16.56	₹82.80
50+	₹12.93	₹646.50
150+	₹11.10	₹1,665.00
500+	₹9.74	₹4,870.00
3,000+	₹8.64	₹25,920.00
6,000+	₹8.10	₹48,600.00

Quantity (min 5, multiples of 5)

5 × ₹16.56

₹82.80

excl. GST

₹97.70 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPFP6291LR-G1

₹82.80 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Function: Boost
Number of Outputs: 1
Frequency - Switching: 1MHz
Features: Adjustable current limiting;Overcurrent Protection
Output Type: Adjustable
Topology: Boost
Operating Voltage: 2.6V~6V
Switch tube (built-in/external): Built-in
Output Current: 2A

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.039 g

Overview

The TPFP6291 is a miniature, high-efficiency boost DC/DC regulator. The circuit consists of a current-mode PWM control loop, error amplifier, slope compensation circuit, comparator, and power switch. This IC operates efficiently and stably over a wide load range, capable of directly outputting up to 12V from a lithium battery supply. The TPFP6291 integrates a built-in 2.5A MOSFET. A conversion efficiency of up to 93% effectively extends battery life. The output voltage can be set by adjusting two external resistors, and the output overcurrent threshold can be configured via one external resistor. The switching frequency is controlled at 1.0MHz, effectively reducing peripheral circuit costs for customers. Packaged in SOT23-6, it also provides output short-circuit protection, output overvoltage protection, and overtemperature protection.
