TECH PUBLIC

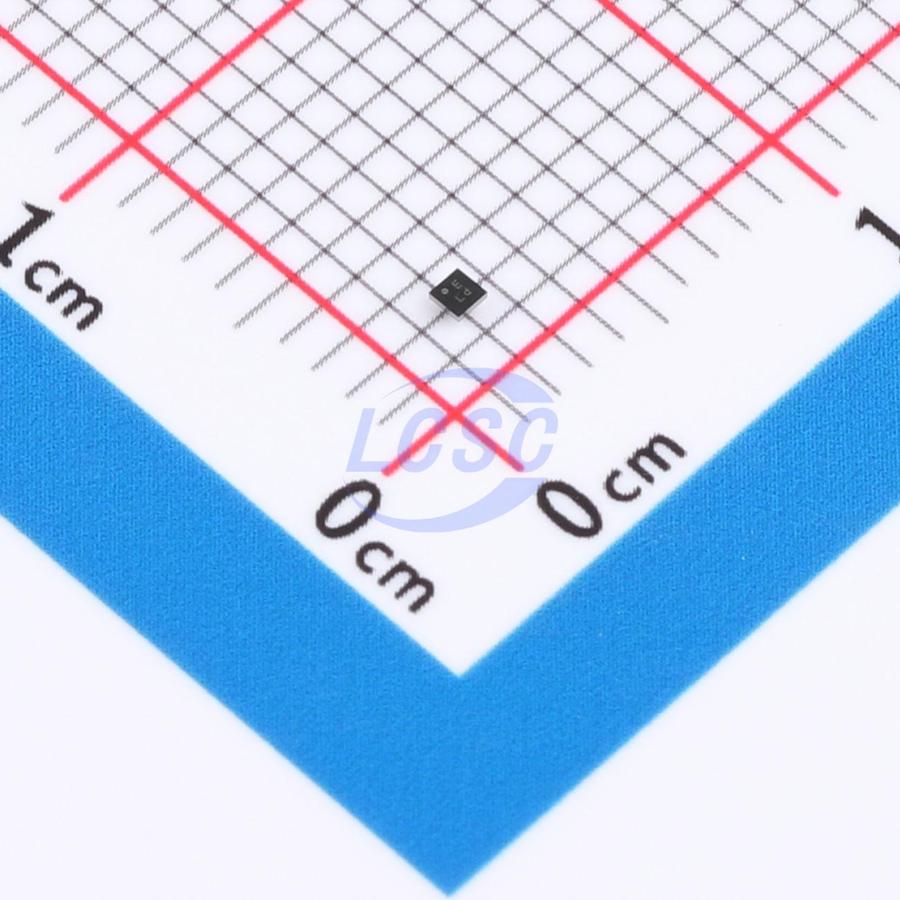

TPFSA515UCX

850mΩ@-3V~+3V 2V~5V WLCSP-4B(0.9x0.9) Analog Switches, Multiplexers, Demultiplexers

WLCSP-4B(0.9x0.9)RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: TPFSA515UCX
Store part #: C52145990
Package / case: WLCSP-4B(0.9x0.9)
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,665 in stock

#C52145990

Stock & price checked 43 h ago

Quantity	Unit price	Pack price
1+	₹78.04	₹78.04
10+	₹62.70	₹627.00
30+	₹54.92	₹1,647.60
100+	₹47.35	₹4,735.00
500+	₹42.81	₹21,405.00
1,000+	₹40.43	₹40,430.00

Quantity (min 1)

1 × ₹78.04

₹78.04

excl. GST

₹92.09 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPFSA515UCX

₹78.04 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: ESD protection;Power-off isolation
Operating Temperature: -40℃~+85℃
Ron: 850mΩ@-3V~+3V
Voltage - Supply: 2V~5V
Con: 23pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.025 g

Overview

This device is a high-performance single-pole single-throw depletion-mode switch. Depletion-mode technology enables the device to pass signals without VDD and isolate signals with VDD. The device can pass or isolate negative signal swings as low as -3.0V and can withstand voltages up to 5.5V. Depletion-mode gate control achieves excellent THD+N performance while consuming minimal power during signal conduction. The device is available in a compact WLCSP-4B package. Standard products comply with lead-free and halogen-free requirements.
