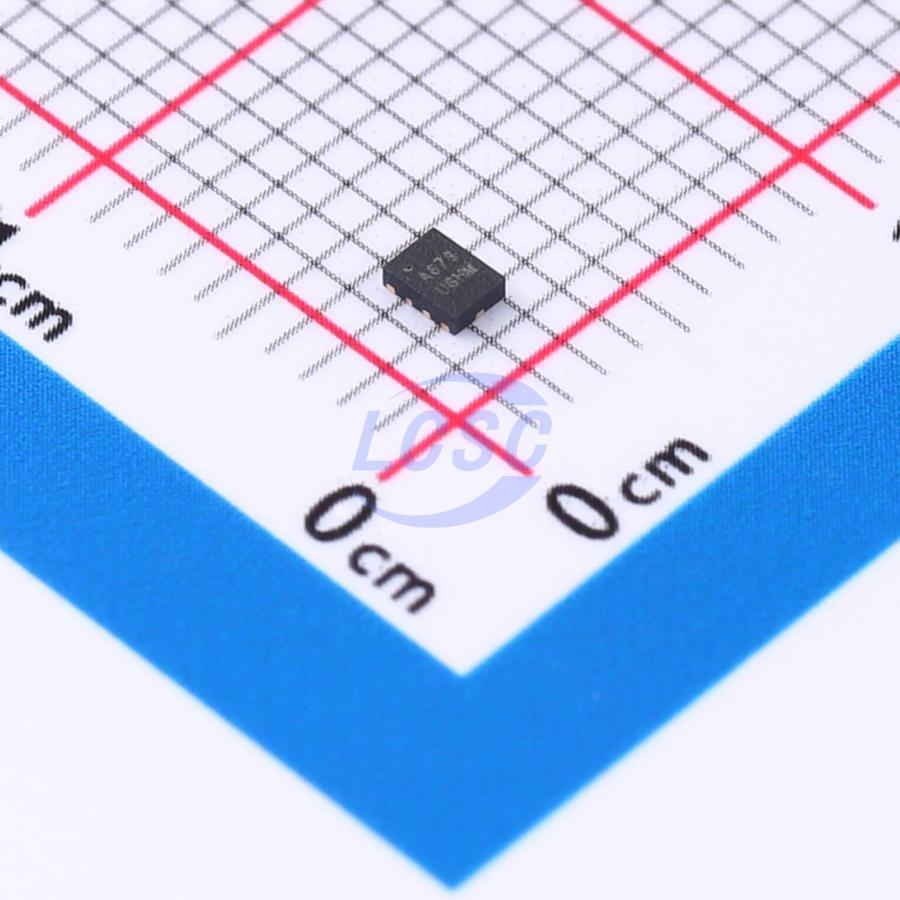

TPG3USB221YP

This is a high-bandwidth switch designed for high-speed USB 2.0 signal switching in mobile phones and consumer applications, such as mobile phones with hubs or controllers with limited USB I/O, digital cameras, and laptops. The wide bandwidth (1.1 GHz) of the switch allows signals to pass through with minimal edge and phase distortion. The device multiplexes the differential output from a USB host device to one of two corresponding outputs. The switch is bidirectional with minimal attenuation of high-speed signals at the output. It is designed for low bit-to-bit skew and high inter-channel noise isolation, and is compatible with various standards such as High-Speed USB 2.0 (480 Mbps).

Applications

• Mobile phones
• Tablets and laptops
• USB Type-C microphone/ground switches
• Telecom signal switching
• Sample-and-hold systems

Key features

• Low on-resistance, typical Ron of 10Ω
• Supply voltage range (2.5V ~ 5.5V)
• Differential 2:1 or 1:2 switch/multiplexer
• OVP up to DC 30V on C0+/- ports
• IEC 64000-4-5 surge protection, no external TVS required on C0+/- ports: 300
• System-side clamp voltage pulse less than 9V, duration less than 200ns
• Power-off protection when VDD = 0V
• Insertion loss: -1dB at 200MHz, -2dB at 650MHz, -3dB at 1GHz
• Small package: QFN2015-10L
