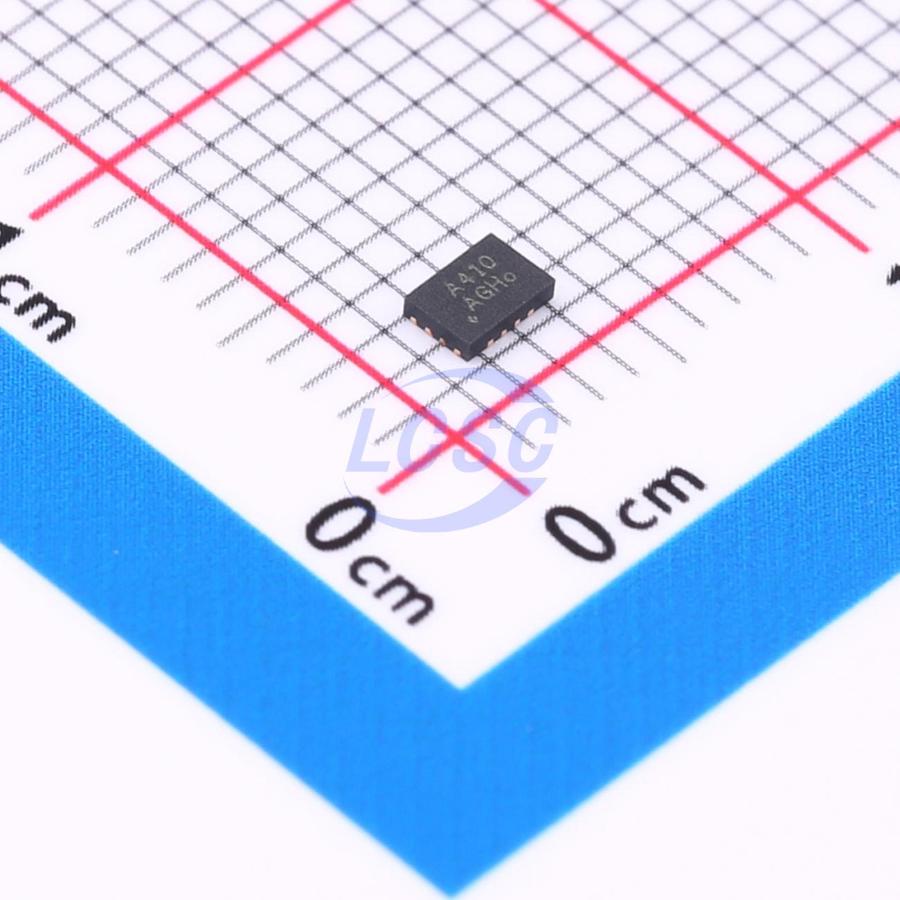

TPG3USB410YD

A high-speed bidirectional passive switch in mux or demux configurations suited for USB Type-C application supporting USB 3.1 Gen 1 and Gen 2 data rates. Based on control pin SEL, the device provides switching on differential channels between Port B or Port C to Port A. A generic analog differential passive switch that can work for any high-speed interface applications requiring a common mode voltage range of 0 to 2 V and differential signaling with differential amplitude up to 1800mVₚ₋ₚ. It employs adaptive tracking that ensures the channel remains unchanged for the entire common mode voltage range. Excellent dynamic characteristics of the device allow high-speed switching with minimum attenuation to the signal eye diagram with very little added jitter. It consumes < 2mW of power when operational and has a shutdown mode exercisable by EN pin resulting < 20μW

Applications

• USB Type-C Ecosystem
• FPD Linkll and FPD Linkll Switching
• Server/Storage Area Networks

Key features

• Wide VCC Operating Range: 1.5V ~ 5.0V
• Low bit-to-bit skew, Bidirectional
• Crosstalk: -31dB @ 2.0 Gbps
• Isolation: -40dB @ 2.0 Gbps
• Supports both AC coupled and DC coupled signals
• High Bandwidth: 5.1GHz @ -3dB BW
• USB 3.1 Super Speed 10Gbps Switch
• ESD Tolerance: 2kV HBM
