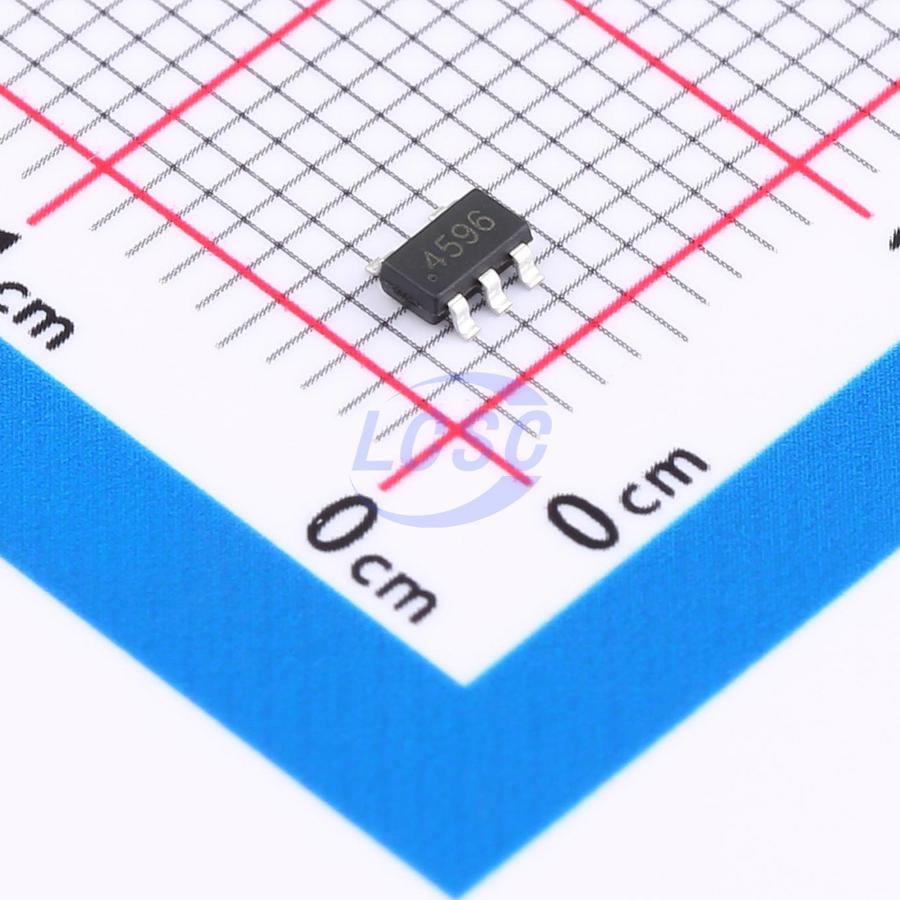

TECH PUBLIC

TPG4596S5

1 2.5Ω 1.6V~5.5V SOT-23-5 Analog Switches, Multiplexers, Demultiplexers

SOT-23-5RoHSActive

SINGLE-CHANNEL SPST ANALOG SWITCH

Manufacturer: TECH PUBLIC
Manufacturer part #: TPG4596S5
Store part #: C47117614
Package / case: SOT-23-5
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,650 in stock

#C47117614

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹23.79	₹118.95
50+	₹20.86	₹1,043.00
150+	₹19.61	₹2,941.50
500+	₹18.03	₹9,015.00
3,000+	₹17.33	₹51,990.00
6,000+	₹16.92	₹1,01,520.00

Quantity (min 5, multiples of 5)

5 × ₹23.79

₹118.95

excl. GST

₹140.36 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPG4596S5

₹118.95 for 5 + GST

Specifications

Features: Power-off isolation
Operating Temperature: -40℃~+85℃
Number of Channels: 1
Ron: 2.5Ω
Voltage - Supply: 1.6V~5.5V
Con: 7pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.036 g

Overview

A low voltage single-pole, double-throw (SPDT) analog switch intending for use in chopping, modem, signal gating, and signal multiplexing for analog-to-digital and digital -to-analog conversion systems.

Applications

Cell phones and TWS headset
Audio, Video, UART, USB2.0 Signal and Supply Routing

Key features

Low On-resistance, R0n = 2.5Ω
1.8V Logic Compatible Control Pin Overrides V+ to Achieve True Isolation Even When Supply Is Dead
High Off-isolation: -100dB @ 100KHz
Low Channel-to-Channel Crosstalk: -97dB @ 100KHz
High Bandwidth (-3dB @700MHz)
Suitable For USB2.0 High-Speed Routing
Low Quiescent Current (< 2μA)
With Very Wide Supply Range (1.5V ~ 5.5V)
