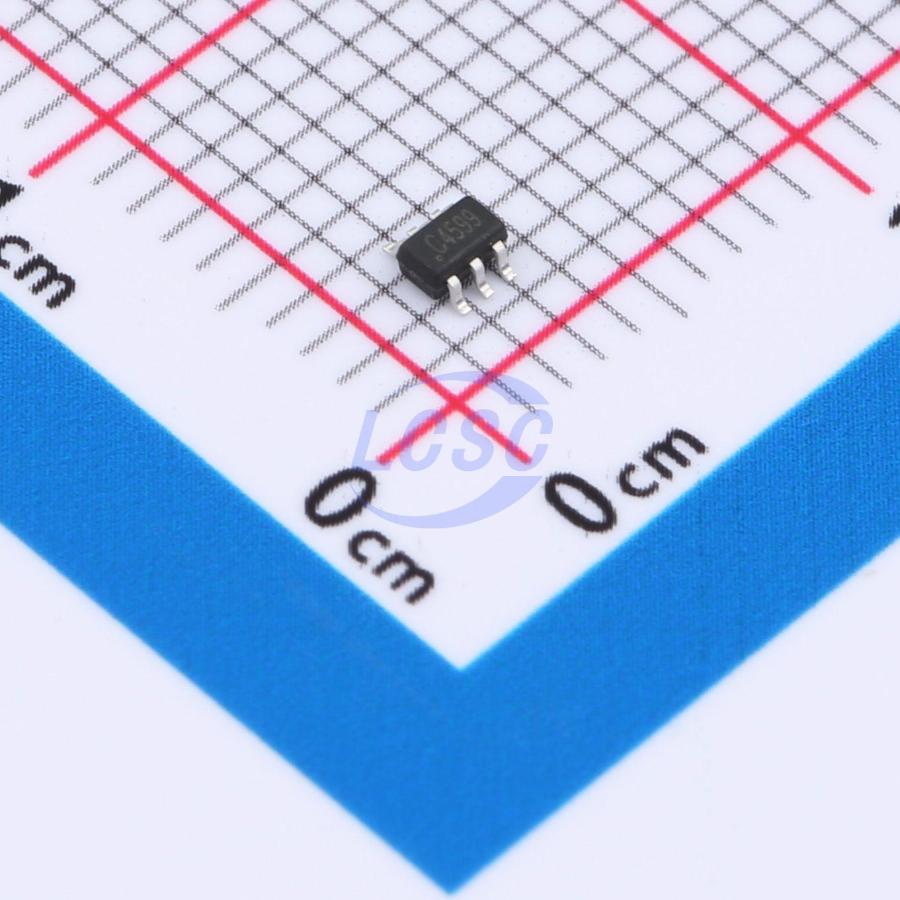

TPG4599C6 TECH PUBLIC
TECH PUBLIC

TPG4599C6

1.8Ω 1.5V~5.5V SOT-363 Analog Switches, Multiplexers, Demultiplexers

SOT-363RoHSActive

SINGLE-POLE,DOUBLE-THROW ANALOG SWITCH

Manufacturer
TECH PUBLIC
Manufacturer part #
TPG4599C6
Store part #
C42449026
Package / case
SOT-363
Category
Analog Switches, Multiplexers, Demultiplexers
Packaging
Tape & Reel (TR)
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,180 in stock

#C42449026

Stock & price checked 5 days ago

QuantityUnit pricePack price
5+₹20.47₹102.35
50+₹17.87₹893.50
150+₹16.76₹2,514.00
500+₹15.39₹7,695.00
3,000+₹14.76₹44,280.00
6,000+₹14.39₹86,340.00

5 × ₹20.47

₹102.35

excl. GST

₹120.77 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 7–10 working days
  • GST invoice with every order
  • Standard pack: 3,000 per reel

TPG4599C6

₹102.35 for 5 + GST

Specifications

Features
Power-off isolation
Operating Temperature
-40℃~+85℃
Ron
1.8Ω
Voltage - Supply
1.5V~5.5V
Con
7pF

Packaging & compliance

RoHS
RoHS
Lifecycle
Active
Packaging
Tape & Reel (TR)
Standard pack
3,000 / Reel
Sold per
Piece
Minimum order
5 (multiples of 5)
Unit weight
0.157 g

Overview

The is a low voltage single-pole, double-throw (SPDT) analog switch intending for use in chopping, modem, signal gating, and signal multiplexing for analog-to-digital and digital -to-analog conversion systems.

Applications

  • Cell phones and TWS headset
  • Audio, Video, UART, USB2.0 Signal and Supply Routing

Key features

  • Low On-resistance, R0n = 1.7Ω when A = 5V
  • 1.8V Logic Compatible Control Pin
  • A Overrides VCC to Achieve True Isolation Even When Supply Is Dead
  • High Off-Isolation: -100dB @ 100KHz
  • Low Channel-to-Channel Crosstalk: -97dB @ 100KHz
  • High Bandwidth (-3dB @700MHz)
  • Suitable For USB2.0 High-Speed Routing
  • Low Quiescent Current (< 2uA)
  • With Very Wide Supply Range (1.5V ~ 5.5V)
