TECH PUBLICDatasheet (PDF)

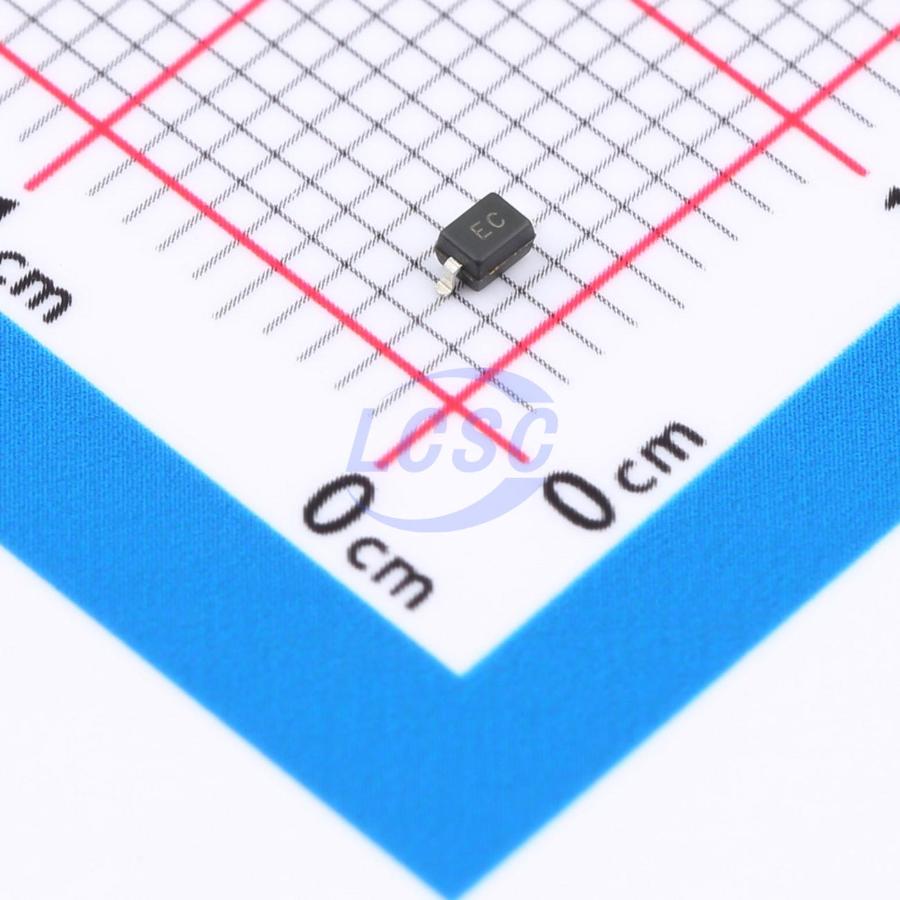

TPGBLC15C
32VC Clamp ESD DIODE SOD-323
SOD-323RoHSActive
ESD DIODE 15VWM 32VC SOD-323
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPGBLC15C
- Store part #
- C708741
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,450 in stock
#C708741
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.13 | ₹91.30 |
| 100+ | ₹7.29 | ₹729.00 |
| 300+ | ₹6.38 | ₹1,914.00 |
| 3,000+ | ₹5.49 | ₹16,470.00 |
| 6,000+ | ₹4.95 | ₹29,700.00 |
| 9,000+ | ₹4.67 | ₹42,030.00 |
10 × ₹9.13
₹91.30
excl. GST
₹107.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPGBLC15C
₹91.30 for 10 + GST
Specifications
- Clamping Voltage
- 32V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 10A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 350W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 16.7V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 200nA
- Reverse Stand-Off Voltage (Vrwm)
- 15V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.096 g
Overview
Applications
- Cellular Handsets and Accessories
- Personal Digital Assistants
- Notebooks and Handhelds
- Portable Instrumentation
- Peripherals
- Pagers Peripherals
- Desktop and Servers
Key features
- 350W peak pulse power (8/20μs)
- Ultra low capacitance: 1.0 pF typical
- Ultra low leakage: nA level
- Low clamping voltage
- Protects one power line or data line
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-4 (EFT) 40A (5/50ns)
- RoHS Compliant
