TECH PUBLICDatasheet (PDF)

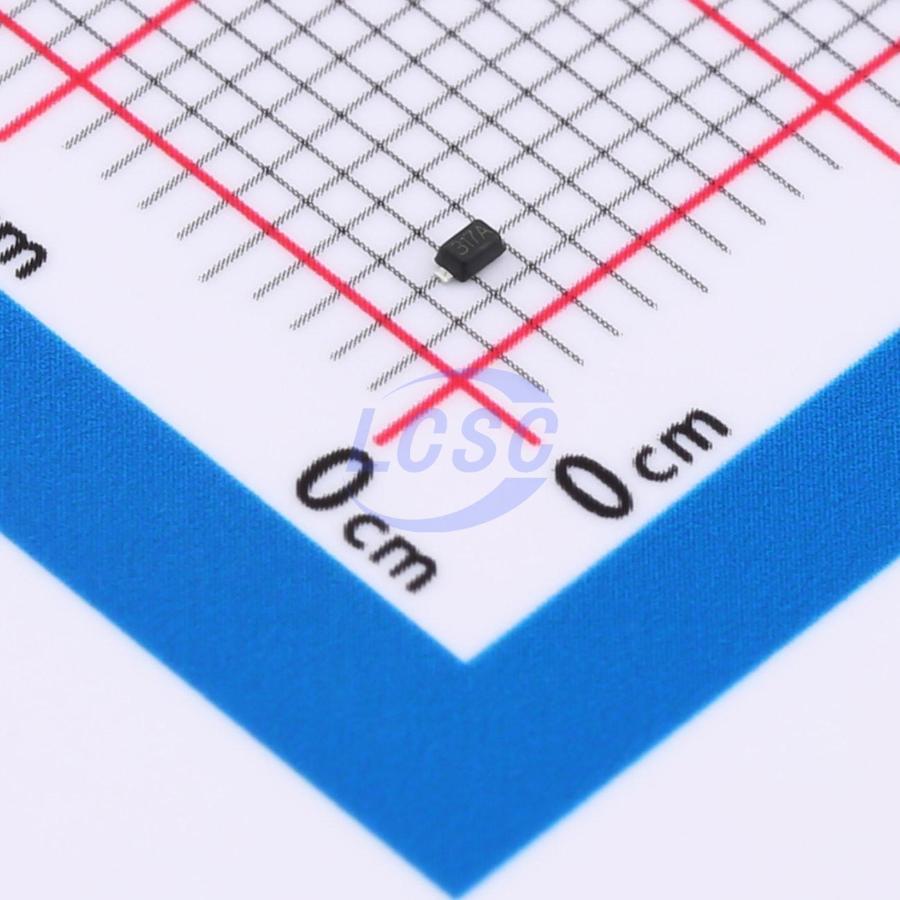

TPGC03CWT
18VC Clamp 17A Ipp SOD-523
SOD-523RoHSActive
3.3VWM 18VC SOD-523
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPGC03CWT
- Store part #
- C41408081
- Package / case
- SOD-523
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,435 in stock
#C41408081
Stock & price checked 15 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.54 | ₹62.70 |
| 50+ | ₹9.83 | ₹491.50 |
| 150+ | ₹8.48 | ₹1,272.00 |
| 500+ | ₹7.47 | ₹3,735.00 |
| 3,000+ | ₹6.65 | ₹19,950.00 |
| 6,000+ | ₹6.26 | ₹37,560.00 |
5 × ₹12.54
₹62.70
excl. GST
₹73.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPGC03CWT
₹62.70 for 5 + GST
Specifications
- Clamping Voltage
- 18V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 17A
- Peak Pulse Power Dissipation (Ppp)
- 310W@8/20us
- Voltage - Breakdown
- 4.2V
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.024 g
Overview
Applications
- Cellular Handsets and Accessories
- Personal Digital Assistants
- Notebooks and Handhelds
- Portable Instrumentation
- Peripherals
Key features
- Low operating voltage: 3.3V
- Ultra low capacitance: 0.8pF (typ)
- Ultra low leakage: nA level
- Low clamping voltage
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-4 (EFT) 40A (5/50ns)
- 2-pin leadless package
- These are Pb-Free Devices
- Response Time is Typically < 1 ns
