TECH PUBLICDatasheet (PDF)

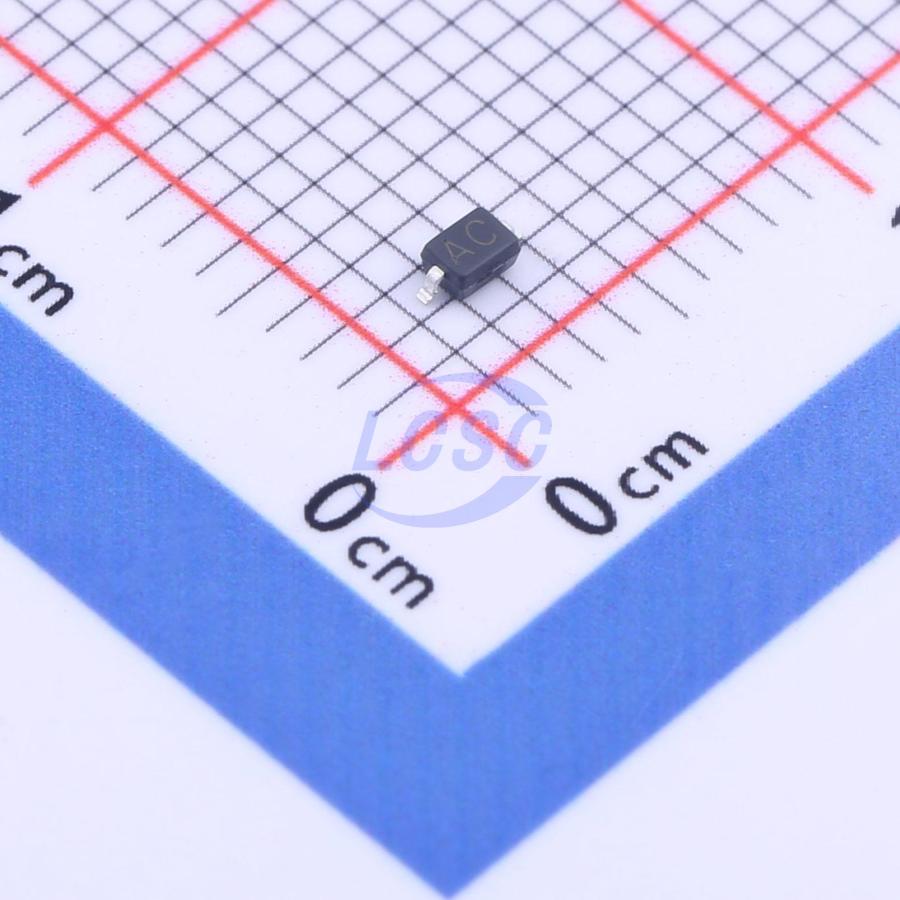

TPGC05C-1
nan
SOD-323RoHSActive
5VWM 20VC SOD-323
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPGC05C-1
- Store part #
- C2928697
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,105 in stock
#C2928697
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.08 | ₹65.40 |
| 50+ | ₹10.48 | ₹524.00 |
| 150+ | ₹9.17 | ₹1,375.50 |
| 500+ | ₹8.19 | ₹4,095.00 |
| 3,000+ | ₹7.41 | ₹22,230.00 |
| 6,000+ | ₹7.03 | ₹42,180.00 |
5 × ₹13.08
₹65.40
excl. GST
₹77.17 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPGC05C-1
₹65.40 for 5 + GST
Specifications
- Clamping Voltage
- 20V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 18A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 350W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 6V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 200nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
Applications
- Cellular Handsets and Accessories Personal Digital Assistants
- Notebooks and Handhelds Portable Instrumentation Peripherals
Key features
- 350W peak pulse power (8/20μs)
- Low operating :5V
- Ultra low capacitance: 1.0 pF typical
- Ultra low leakage: nA level
- Low clamping voltage
- Protects one powerline or data line
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-4 (EFT) 40A (5/50ns)
- RoHS Compliant
