TECH PUBLICDatasheet (PDF)

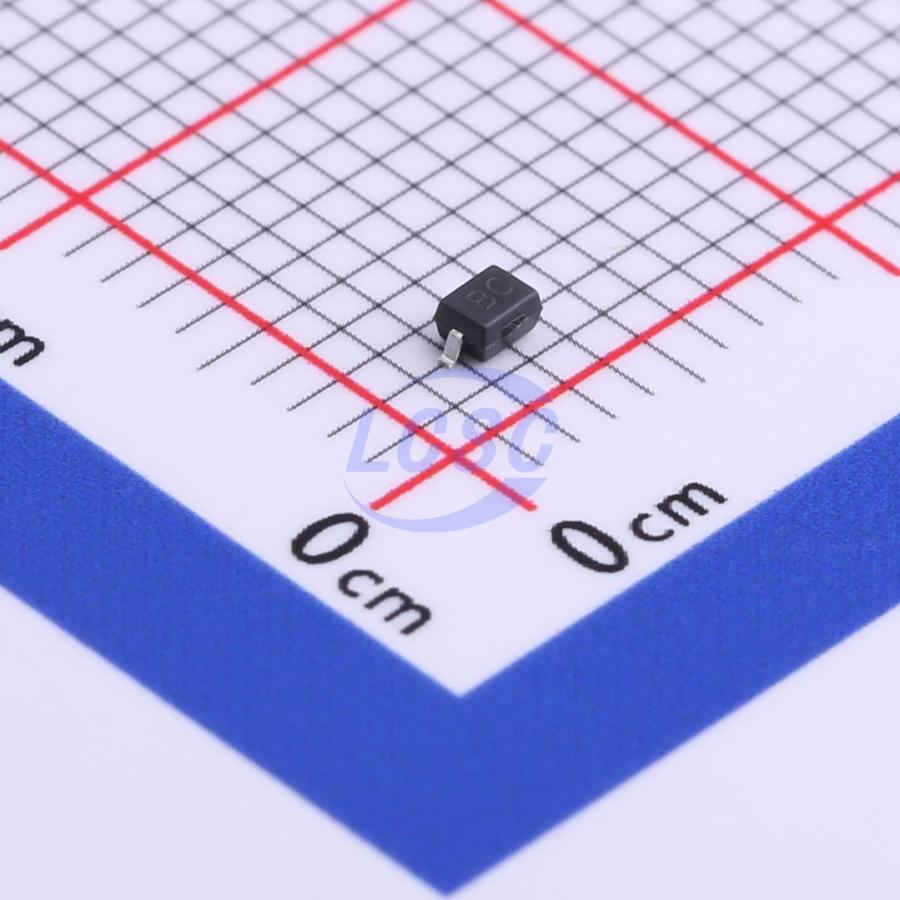

TPGC08C
20VC Clamp TVS DIODE SOD-323
SOD-323RoHSActive
TVS DIODE 8VWM 20VC SOD-323
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPGC08C
- Store part #
- C708756
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C708756
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.73 | ₹87.30 |
| 100+ | ₹6.85 | ₹685.00 |
| 300+ | ₹5.91 | ₹1,773.00 |
| 3,000+ | ₹5.20 | ₹15,600.00 |
| 6,000+ | ₹4.64 | ₹27,840.00 |
| 9,000+ | ₹4.35 | ₹39,150.00 |
10 × ₹8.73
₹87.30
excl. GST
₹103.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPGC08C
₹87.30 for 10 + GST
Specifications
- Clamping Voltage
- 20V
- Peak Pulse Power Dissipation (Ppp)
- 350W@8/20us
- Voltage - Breakdown
- 8.7V
- Number of Channels
- 1
- type
- TVS
- Reverse Leakage Current (Ir)
- 200nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 8V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.098 g
Overview
Applications
- Cellular Handsets and Accessories
Key features
- 350W peak pulse power (8/20μs)
- Low operating :8V
- Ultra low capacitance: 1.0 pF typical
- Ultra low leakage:nA leel
- Low clamping voltage
- Protects one power line or data line
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-4 (EFT) 40A (5/50ns)
- RoHS Compliant
